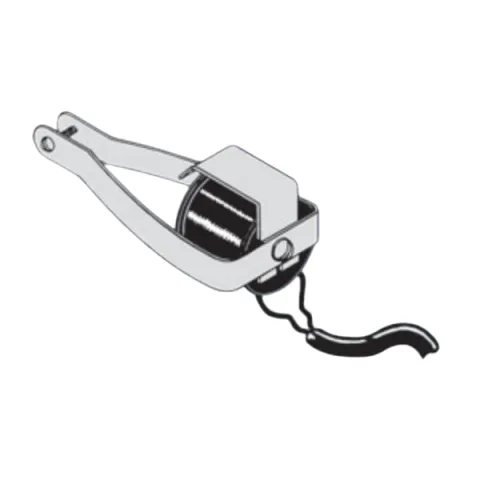

Ace Glass 6588-10 Coil 31.8mm OD with Core and Band Clamp and Wiring 120V 50/60Hz 24VDC

Coil, 31.8mm OD, complete with core, band clamp and wiring, 30 seconds max intermittent use, 120v 50/60Hz, 24vdc

With high permeability core to operate takeoff device on standard automatic distilling heads. Fastened to head with special clamp. Furnished complete with clamp and wires to connect to automatic time switch. For operation at 120 volt, 50/60 Hz AC max. or 24 volts DC max. For intermittent service only; 30 sec. maximum ON, 50% max. duty cycle.

Diameter of Core 12.5mm, Diameter of Coil 38mm, Height 32mm.
