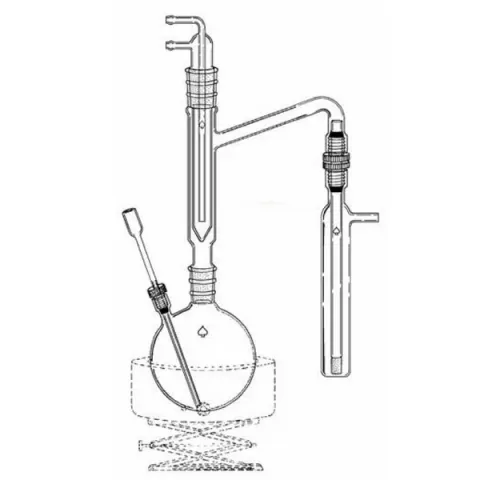

Ace Glass 6556-10 Cyanide Distillation Apparatus Model B

Similar to Model A, except threaded adapter used to connect still head and trap has been eliminated. Trap is supplied with #11 Ace-Thred for direct connection. As in Model A, dispersion tube depth is still adjustable. Side arm on trap is 8mm O.D. PTFE ferrules are supplied in place of FETFE O-Rings for threaded compression fittings.

Apparatus consists of:

• Flask, 1000mL, 24/40, #7 Thred, with Bushing
• Fill Tube
• Distilling Head only, 24/40, 29/42, #11 Thred
• Condenser, Finger, 29/42
• (2) Bushing, #11
• Dispersion Tube, Porosity D (10-20 micron)
• Trap, #11 Thred
• (3) Ferrules, one #7, two #11, Per Pkg.
