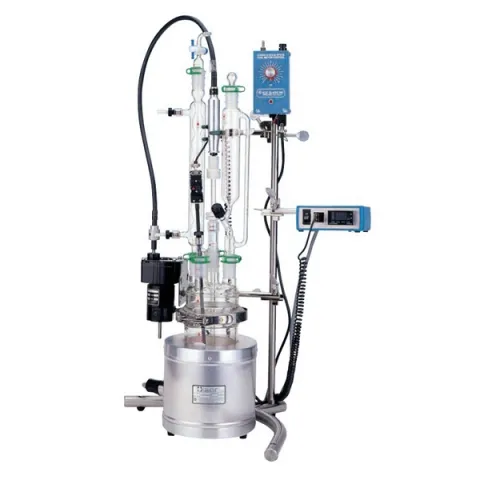

Ace Glass 6542-25 All-In-One Benchtop Reactor 2L

A complete, general purpose benchtop reactor. Self-supported with a 20x15in footprint, 33in high. Reactor features a 100mm(4in) head with (4)24/40 joints, an allihn condenser, a pressure equalizing funnel, overhead glass stirring assembly with variable speed motor and controller, heating mantle with type J PTFE covered probe and controller. All wetted surfaces are glass or PTFE. A sturdy stand and all necessary clamps and clips are included.

This comprehensive 2L bench scale reactor is designed to provide a versatile and reliable solution for a wide range of laboratory applications.

Features:

• Flange and Assembly: Equipped with a 4" diameter flange on both the flask and head, featuring a CAPFE (PTFE encapsulated silicone rubber) O-Ring and Quick-Release clamp. This design simplifies assembly/disassembly and the removal of contents.
• Wetted Components: All components in contact with substances are constructed from glass and PTFE, ensuring chemical compatibility.
• High Purity: Utilizes PTFE joint sleeves and valves, along with FETFE O-Rings, for a highpurity, grease-free system with excellent chemical resistance.
• High-Vacuum Compatibility: Suitable for high-vacuum situations, providing versatility in various laboratory applications.
• Stirring Mechanism: Features overhead mechanical stirring with a 10mm diameter glass stirring shaft, PTFE multi-paddle agitator, flexible shaft, and a variable-speed motor with a controller.
• Temperature Control: Equipped with an electric heating mantle controlled by a digital temperature controller. It includes a Type "J" PTFE-covered thermoprobe, allowing operation from room temperature to 200°C.
• Accessories: Includes a 125mL pressure equalizing addition funnel, a reflux condenser, and essential support equipment such as a support stand, clamps, clamp holders, and joint clips.
