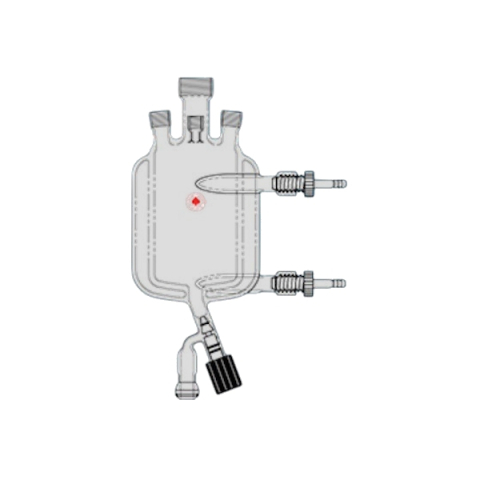

Ace Glass 6439-325 Jacketed Pressure Reaction Flask w/ Vertical Necks, #11 Inlet/Outlet to 3/8" Tubing, 0-8 mm 28/15 Ball Joint Bottom Outlet, 2000 mL

2000 mL pressure vessel body, one-piece, jacketed, #25 center neck, (3) #15 and (1) #7 side necks, 0-8 mm 28/15 ball joint bottom outlet, #11 Ace-Thred connection on jacket inlet/outlet for use with 3/8" I.D. tubing

The jacketed flask with bottom outlet for pressure reactor systems designed to perform low to moderate positive pressure reactions, synthesis and catalysis. Reactor flask capacity is 2000 ml and uses Ace-Threds to achieve a leak-tight system. One-piece design features a 25 mm center opening and has a higher allowable pressure rating than Ace Glass two-piece design. Rated 45 PSI at 100 Degrees C. Bottom outlet has 28/15 O-Ring ball joint connection. Jacket inlet/outlets have #11 Ace-Threds.
