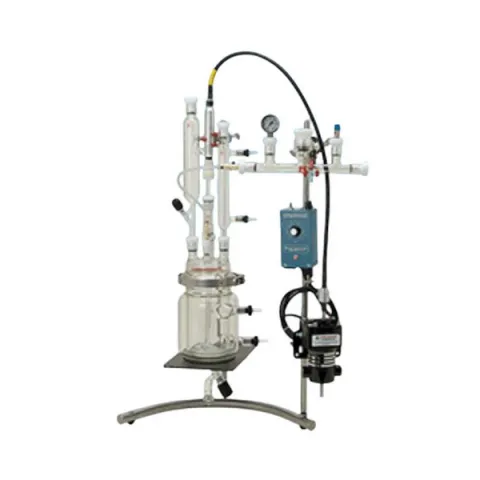

Ace Glass 6429-442 Complete Jacketed Two-Piece Pressure Reactor w/ 0-10 mm Valve, 150 mm Flange, 3000 mL, #15 Ace-Thred to 3/8" I. D Tubing Connectors

The following ACE heavy wall borosilicate glass Pressure Reactors have been designed and tested to provide the chemist with a system to perform low to moderate positive pressure reactions, synthesis, and catalysis; or simply to run reactions under inert gas conditions. Reactor capacity is 3000 mL and uses Ace-Threds to achieve a leak-tight system.

The reactor is the two-piece System, with a maximum pressure limit of 35 psig at 100°C. The Two-Piece System consists of a flanged flask and head with a shallow O-Ring groove, O-Ring, and quick-release clamp. Flange size is 150 mm inside diameter, allowing the use of large agitators and facilitating product removal and clean-out.

Features:

• Jacketed
• All inert materials
• Reactions at ambient or pressure conditions
• Filtering by vacuum and/or pressure
• Removable/changeable filters - screen or glass, wide choice of porosities
• Mechanical agitation
• Bottom drain valve
• Easy assembly/disassembly for cleaning

Package includes 3000 mL, two-piece pressure reactor system, complete with 0-10 mm valve and 28/15 ball joint bottom outlet jacketed glass body, 150 mm head with #15 center neck, (2) #15 and (1) #7 side necks, addition funnel, condenser, manifold with gauge and rupture disc, stirring assembly, #15 Ace-Threds on jacket inlet/outlet for use with 3/8" I. D. tubing.
