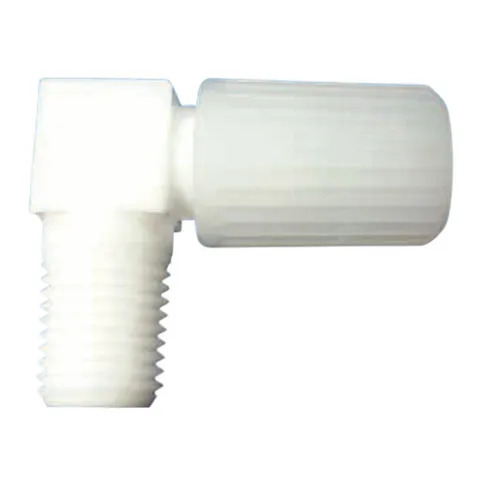

PTFE Tube Compression Elbow to Male NPT. Body and ferrules made of virgin PTFE. The nut and gripper are made of PVDF.
Features:
- Performance at ambient room conditions: 120psig for 1/16in fittings linear decreasing to 80psig for 3/4in fittings and 60psig for fittings larger than 3/4in.
- Performance at elevated temperatures up to 85C/185F: 90psig for 1/16in fittings linear decreasing to 60psig for 3/4in fittings and 40psig for fittings larger than 3/4in.
See 12729 family for replacement ferrule + gripper sets.
