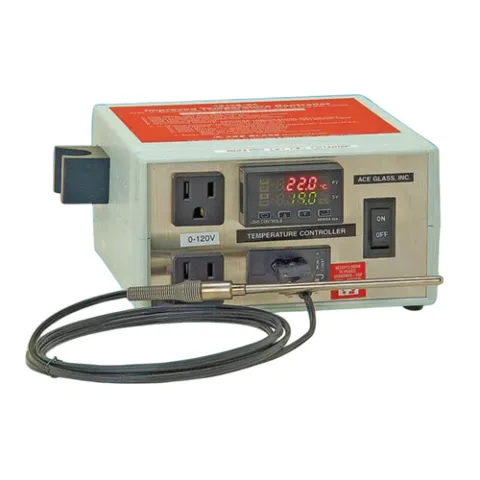

Ace Glass 12126-45 Temperature Controller Complete with J Type Probe 120V 50/60Hz

Temperature controller ideal for two circuit mantles or general use. Features two front mounted outlets, 16 segment ramp and soak function, fuzzy logic auto tune PID, type 'J' thermocouple, dual 4 digit LED display, universal TC jack for SMP or OST plugs. Unit is downsized, compact and lightweight for bar mounting or benchtop operation. Temperature input of 50 to 800°C, input power 120V, 50/60 Hz, 15 amps fused.

Features:

• Two front-mounted outlets.
• Bar mountable or benchtop operation.
• Single loop type, downsized and lightweight.
• Temperature range: -70 to 870°C, adjustable.
• 0.1°C/0.1°F temperature resolution, field selectable.
• Absolute accuracy: ±0.25% of range, max. ±2°C.
• Control accuracy: ±0.1°C typical.
• Microprocessor-based 1/32 DIN model for digital accuracy and reliability.
• Dual four-digit LED display for instant recognition of process temperature and setpoint 1 value.
• Auto tune PID control can maintain ±0.1° under normal conditions.
• Ramp and soak, field selectable, 16 segment with hold or shut-off.
• Field selectable output % power limit when heating smaller vessels or when using very low setpoints. (factory set at 60% for safety).
• Output circuity utilizes zero crossing fired solid state relay proportional control that provides interference free power (RFI) to electrical heater type resistive loads.
• Heater outlets provide time proportional control, meaning overshoot is minimized. Percent output decreases as set temperature is approached.
• Universal TC input jack for "mini" or "standard" plugs.
• Input power: 120 volts, 50/60 Hz, 15 amps maximum, fused.
• Unit measures: 3.5 inches high x 6-3/16 inches wide x 6-5/16 inches deep; weight: 2.5 lbs.
• Operating instruction label on top for quick reference
• With J type probe
