Accuform VPL122 Laser Line Projector

Laser lines for ideal solutions when conventional floor tapes or paint are unable to work.

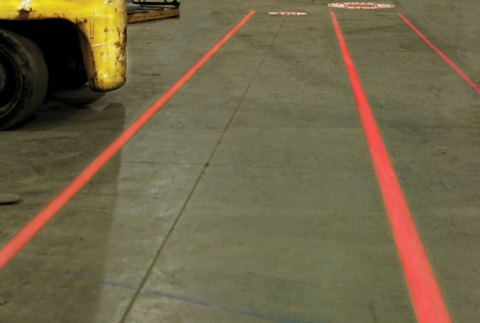

Place the laser line projector onto the length of the floor surface to alert others of safe traffic areas for pedestrians and forklifts in indoor and sheltered outdoor areas

Each projector casts a single line and creates a projected line up to 36 feet

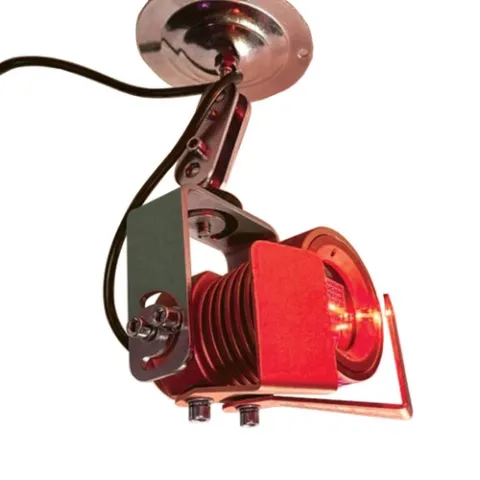

Compact, lightweight aluminum projector (7 5/8-in x 6 5/8-in x 4 3/8-in) contains a 260 milliwatt(mW) laser diode (Class 3B). Mounting bracket included.

Operates on 110 VAC/60 Hz) power supply with 12 VDC power plug cord

Mounting height should not exceed 15-ft.

Operating temperature range -4 to 104 F

Operation humidity range 20 - 90% RH

Available in red or green

Product Description

The formula for line projection length: Mounting height (in feet) x 2.4 = approximate line length. The width of line I s dependent on mounting height. Example: 6.5 ft H = 15.6-ft length x 3/4" wide line.

The line will widen at higher mounting height distances.

For longer line lengths, mount additional projector(s) at intervals to overlap the ends of the lines to maintain continuous and relative consistent line brightness.

Unit of Measure: EA

Color: Red
