Rotary evaporator
Operating ambient temperature range	5~35°C / 41°F ~ 95°F
Speed range	5~315 rpm
Evaporation capacity	Up to 23 ml/min
Pressure setting range	0-1013 hPa
RPM display	Digital display / Control knob
Rotation mode	Forward / Reverse / Auto inversion
Spring-loaded jack	Manual balance (maximum height 200 mm, stepless regulation, one-touch lock)
Vacuum controller	VR102S, installed above jack handle with attachment bracket
Vacuum control solenoid valve	OVR10, installed in the rear of stand base
Configuration	Rotary motor DC brushless (simple servo)
Condenser retention	---
Rotary evaporator	DC motor: Motor overload protection, overvoltage, low voltage, rotation speed sensor error AC adapter: Short circuit in internal circuit, overcurrent protection, overvoltage protection
Vacuum controller	Communication error, Pressure sensor error, Memory error, Leak error, High pressure error, Auto leak at error occurrence
Safety functions	Rotary evaporator DC motor: Motor overload protection, overvoltage, low voltage, rotation speed sensor error AC adapter: Short circuit in internal circuit, overcurrent protection, overvoltage protection
Cooling condenser	Double corrugated tube (cooling surface: 0.143 m2) Suction port: GL-14 (upper), 10 nozzle, 10 nozzle Cooling port: GL14 (two places in lower part), two 10 nozzles
Compatible evaporation flask	50-2000 ml. Use optional reducer to attach small flasks
Compatible receiving flask	100-2000 ml
External dimensions	W529 x D324 x H745
Overall dimensions (including bath)	554 x 365 x 745
Weight	~10.5 kg
Power rating	200-230V single phase 1A no plug, round terminal
Included accessories	Main unit: AC adapter (1), power cable (1), bath guide (1), rear cover (1), single-sided tape fastener roll (1), double-sided tape fastener roll (1) Glass set: Cooling condenser (type A/B/C)(1), rotary joint (1), evaporation flask (1), receiving flask (1), ball joint clamp (1), flask clip (1), vacuum seal (1), condenser insulation kit (1), condenser bracket (1) (for type B/C), hex wrench (1) (for type B/C)

Water Bath
Performance
Operating temp. range	Room temp. +10~90°C
Temp. adjustment accuracy	+-1°C
Temp. control system	PlD control by microprocessor
Temp. setting / display method	White LED digital display, key entry, min. digit of 1°C
Operation function	Overshoot alert, Autoresume (selectable), calibration offset
Additional function	1000W aluminum sheathed heater
Heater	Pt100 Omega
Sensor
Safety device	Automatic overheat prevention, independent overheat prevention (fixed temp.), temperature upper limit error, Overcurrent protection fuse
Water tank:Capacity	~5L
Water tank:Dimensions
External dimensions	262 (max. D286) x H240 mm
Weight	~4.5kg
Power source (50/60 Hz)	200-230V, 5-6A
Accessories	Power cable (1), Spare fuse for main power (large)(1), Spare fuse for service outlet 2A (small)(1), bath protection cover (optional)
Country of Origin	China

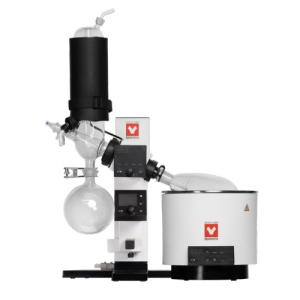

Yamato REV-212M-CW2A Rotary Evaporator with Vacuum Regulator, Water Bath (5L), Glassware C, 220V
