Performance	Details
Operating ambient temperature range	5~35°C / 41°F ~ 95°F
Speed range	5~315 rpm
Evaporation capacity	Up to 23 ml/min
RPM display	Digital display / Control knob
Rotation mode	Forward / Reverse / Auto inversion
Spring-loaded jack	Manual balance (maximum height 200 mm, stepless regulation, one-touch lock)
Configuration	Rotary motor DC brushless (simple servo)
Condenser retention	---
Safety functions	Rotary evaporator DC motor: Motor overload protection, overvoltage, low voltage, rotation speed sensor error AC adapter: Short circuit in internal circuit, overcurrent protection, overvoltage protection
Cooling condenser	Double corrugated tube (cooling surface: 0.143 m2) Suction port: GL-14 (lower), 10 nozzle Cooling port: GL14 (two places in lower part), two 10 nozzles
Compatible evaporation flask	50-2000 ml. Use optional reducer to attach small flasks
Compatible receiving flask	100-2000 ml
External dimensions	W719 x D24 x H534
Overall dimensions (including bath)	W744 x D365 x H534
Weight	~10.0 kg
Power rating	100-115V 1A with plug
Included accessories	Main unit: AC adapter (1), power cable (1), bath guide (1), rear cover (1), single-sided tape fastener roll (1), double-sided tape fastener roll (1) Glass set: Cooling condenser (type A/B/C)(1), rotary joint (1), evaporation flask (1), receiving flask (1), ball joint clamp (1), flask clip (1), vacuum seal (1), condenser insulation kit (1), condenser bracket (1) (for type B/C), hex wrench (1) (for type B/C)

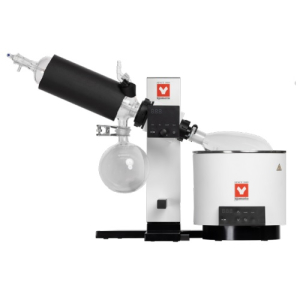

Yamato RE-202-AWA Set of Rotary Evaporator, Water Bath (5L), Glassware A, 115V
