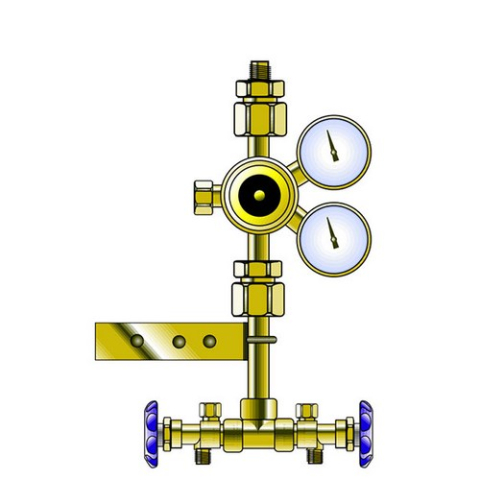

Western Enterprises SD-1-2 0 to 15 PSIG Internal Adjustable Line Regulator Acetylene (POL) Gas Manual Manifold System

Manual manifolds are designed to regulate compressed gases in high pressure cylinders (up to 3,000 psig) and are ideal for manifold applications not requiring automatic changeover from the service to the secondary bank. The SD series simple duplex manifold is specifically designed as an economical system for a total capacity of two cylinders-one per side. Cylinders may be used one at a time maintaining a reserve or both at the same time for higher flow capacity. Helium and Hydrogen manifolds shipped with synthetic fiber braided Pigtails.

Features:

• Manual 2 cylinder System
• Model RM regulator included for most gas services Note: RDM Series used for Oxygen
• Model RS-300-MAN regulator included for SDHP series manifolds
• 24" flexible stainless steel braided Pigtails
• High quality header shut-off valves
• An alarm can be added to non fuel gas SD systems by adding items WME-4-9 pressure switch,WMS-1-97 adapter, WMS-9-25C power source and BIA-3 remote A/V alarm.
