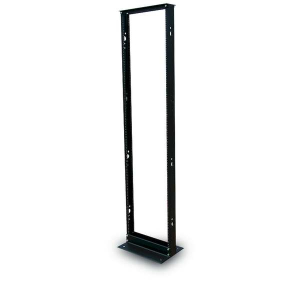

Tripp-Lite SR2POST 45U SmartRack 2-Post Open Frame Rack 800 lbs (362.9 kgs) Capacity Organize and Secure Network Rack Equipment

SR2POST 2-Post SmartRack Open Frame Rack is an economical way to accommodate 45U of rack space for 19-inch rack-mount applications where space is at a premium. Its heavy-duty, aluminum construction can safely support 800 pounds (362.9 kilograms) of rack-mount equipment. The black, textured power coat finish makes it resistant to scratching while giving it a classic, attractive appearance. The SR2POST is easy to install due to a self-squaring design combined with 12-24 threaded and numbered mounting holes, and bolt down provisions. Only standard hand tools are required for installation (9/16" wrench and 9/16" socket/ratchet). Multiple units can be bolted together side by side for easy expansion or customization when required. The SR2POST 2-Post SmartRack Open Frame Rack has been approved by EIA-310-D, IEC 60297-3-100, and RoHS.

Features

• Supports 800 lbs (362.9 kgs) of rackmount equipment
• Textured powder coat finish
• Heavy Duty Aluminum construction
• 12-24 threaded and numbered mounting positions
• Bolt down provisions
• Self squaring design
• Black finish
• Toolless button keyhole mounting slots accept PDUs and cable managers
• Easy assembly

Package Includes

• SR2POST
• 28 pieces each of 12-24 screws and washers for equipment mounting
• Installation hardware
• Cable management hooks
• Owner's Manual

For more information, please see Data Sheet
