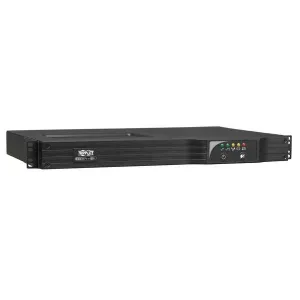

Tripp-Lite SMART1000RM1UN SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS 1U Rack/Vertical WEBCARDLX Network Interface USB DB9 6 Outlets

Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise. Pre-installed WEBCARDLX network interface permits remote UPS management.

Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
• Audible alarm signals loss of utility power, overload and low battery
• 6 NEMA 5-15R outlets
• 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
• 450-joule surge suppression rating

Reliable Battery Backup

• Supports half load up to 14 min. and full load up to 4 min.
• Internal batteries designed for hot-swap field replacement

Pre-Installed WEBCARDLX Network Interface

• Allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, Telnet, SSH, and CLI.
• Optional E2 sensors (sold separately) enable site monitoring of temperature, humidity and contact-closure status

Reduce Service Calls with Auto Probe Autonomous Device Management

• Auto Probe feature (Firmware 15.5.2 and greater) of the LX Platform Interface checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the PowerAlert Network Shutdown Agent (PANSA)

Switchable Outlets

• 2 load banks, each with one outlet controllable remotely to reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

• Maintains 120V nominal output over input range of 83V-147V without using battery power

EMI/RFI Line Noise Filtering

• Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

LED Indicators

• Front-panel LEDs signal power, voltage correction, load level and battery charge state

Communications Ports

• USB and DB9 ports enable data-saving unattended shutdown when used with PowerAlert software
• EPO port supports emergency shutdown in large facilities

Versatile Installation Options

• Hardware included for mounting in 1U of EIA-standard 19 in. 2- or 4-post rack
• Optional 4POSTRAILKIT1U accessory available for extra support in 4-post installations
• Compatible with vertical mount cabinets

Package Includes

• SMART1000RM1UN SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS
• Pre-installed WEBCARDLX network interface
• USB cables
• DB9 cable
• EPO cable
• Mounting hardware
• Owner's manual

For more information, please see Data Sheet
