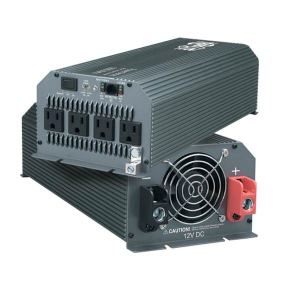

Tripp-Lite PV1000HF 1000W PowerVerter Compact Inverter for Trucks with 4 Outlets

Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 1000 watts of 120V AC power to 4 AC outlets from any 12V battery. Includes a set of DC terminals for simple installation. Compact, lightweight metal case design is among the smallest, most rugged inverters available at this power level.

NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 175a should be positioned no more than 18" from the PV1000HF's battery in the positive line.

Features

• Allows users to run AC appliances from any properly-sized 12V battery or automotive DC system
• Converts 12V DC battery power to 120V AC power
• 1000 watts continuous output power; 2000 watts peak output power (instantaneous)
• 4 outlets
• Compact, lightweight design with all-metal housing
• Remote control jack provides optional remote monitoring and control when used with optional remote module (APSRM4, sold separately)
• Low battery alarm with auto-shutoff prevents deep battery discharge
• High-efficiency operation conserves batteries to prolong run time
• Battery charge level LEDs indicate the approximate charge level (high/medium/low) of connected batteries
• Connected load level LEDs indicate the approximate wattage load level (high/medium/low) of connected equipment
• Operating mode switch controls inverter operation
• Battery Charge Conservation Dial conserves battery power by setting the load-level at which the inverter automatically shuts off
• Cooling fan regulates internal temperature and prolongs service life
• Mounting flanges provide safe, fixed installation
• Grounding lug connects to vehicle ground
• Grooved cooling surface provides additional surface area for more efficient cooling

Package Includes

• PV1000HF Inverter
• Warranty information
• Instruction manual

For more information, please see Data Sheet
