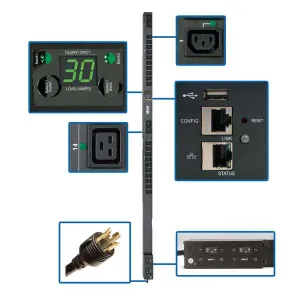

Tripp-Lite PDUMVR30HVNETLX 5.5kW Single-Phase Switched PDU Outlet Monitoring 208/230V Outlets (20 C13 and 4 C19) 0U LX Interface TAA

The PDUMVR30HVNETLX 5.5kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19). LEDs indicate each outlet's on/off power status, and you can monitor each outlet's power consumption remotely or via digital display. A 10-ft. (3.05 m) cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform interface enables full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, Telnet, SSH, CLI, FTP, DHCP and NTP.

A digital LED meter allows you to monitor each bank's load in real time to ensure the PDUMVR30HVNETLX is used at maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

Distributes Network-Grade Single-Phase Power

• 5.5kW 208/230V 24A switched rack PDU (rPDU) with single-phase input/output
• Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components
• NEMA L6-30P with 10-ft. (3.05 m) cord connects to compatible AC power source

24 Switched Outlets Distribute AC Power

• 20 C13 and 4 C19 outlets split into 2 separate load banks
• Outlets can be remotely controlled to power up, power down, reboot or lock out unresponsive devices
• Front-panel LEDs indicate outlets' power status
• Current monitoring provides 1% billing grade accuracy

Digital Load Meter

• Reports load levels for each bank, both banks combined and each outlet
• Supports IP-address self-ID
• Rotates 180° for easy reading at all angles

Outlet-Level Current Monitoring

• Monitors power consumption for each individual outlet remotely or via digital display
• Tracks current power usage trends per device or input cord

Advanced Network Monitoring

• Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
• PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
• IP-based Auto Probe detects lost connectivity and restores service autonomously

Easy 0U Installation in EIA-Standard 19 in. Racks

• Mounts vertically using included toolless buttons or rack-mounting brackets
• Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
• Plug-lock inserts prevent cables from becoming accidentally disconnected

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Package Includes

• PDUMVR30HVNETLX 5/5.5kW Single-Phase Switched PDU
• Configuration cable
• (20) C13 plug-lock inserts
• (4) C19 plug-lock inserts
• (2) 90° PDU rotation brackets
• Additional button mounts
• Owner's manual

For more information, please see Data Sheet
