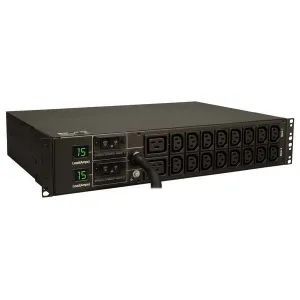

Tripp-Lite PDUMH30HV6 5.5kW Single-Phase Local Metered PDU 16 C13 and 2 C19 Outlets (208/230V) L6-30P Input 1.8 m Cord 2U TAA

Tripp-Lite PDUMH30HV6 5.5kW Single-Phase Local Metered PDU 16 C13 and 2 C19 Outlets (208/230V) L6-30P Input 1.8 m Cord 2U TAA
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
Condition: new
Warranty

Overview


Single-phase PDU allows real-time current metering to ensure proper load balance and detect problems that could cause costly downtime.

Single-Phase PDU Distributes and Monitors Network-Grade Power

This local metered rack PDU (rPDU) provides real-time monitoring of load levels via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH30HV6 features 16 C13 and two C19-208/230V outlets in two separately breakered load banks, which distribute AC power to rack equipment. The banks can be individually monitored to ensure proper load balance and make any necessary upgrades before the PDU becomes overloaded. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

Digital Load Meter Helps Prevent Potentially Expensive Overloads

A digital ammeter reports the load for each outlet bank separately, so you can balance loads across both built-in 20A breakers. Add the two load-bank current values together to determine total input current. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels can keep your TCO (total cost of ownership) low.

2U PDU Easy to Install in an EIA-Standard 19 in. Rack

The reversible all-metal housing installs in 2U of rack space using the included hardware and user-supplied screws. The 1.8-meter (six-foot) cord with NEMA L6-30P input plug connects the single-phase PDU to a protected UPS system, generator or mains input source for reliable multi-outlet power distribution.

TAA-Compliant for GSA Schedule Purchases

The PDUMH30HV6 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Package Includes

  • PDUMH30HV6 5.5kW Single-Phase Local Metered PDU
  • (18) Plug-lock insert sleeves
  • Rack-mounting hardware
  • Owner's manual

For more information, please see Data Sheet
