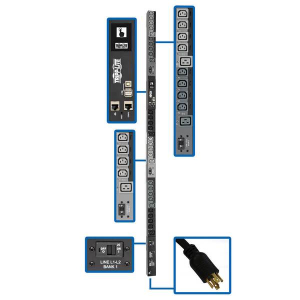

Tripp-Lite PDU3EVSR10L2130 10kW 200-240V 3PH Switched PDU LX Interface, Gigabit, 30 Outlets, L21-30P Input, LCD, 3 m Cord, 0U 1.8 m Height, TAA

Highlights

10kW L21-30P PDU with multi-function touchscreen LCD distributes, monitors and manages AC power. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime.

• 10kW 200-240V 3-phase switched 1.8-meter 0U PDU
• 30 individually controllable outlets-24 C13, 6 C19
• Pre-installed GbE-capable WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
• NEMA L21-30P PDU input with 3 m power cord
• Touchscreen LCD with mobile access option via QR code

Features

Distributes, Monitors and Manages Network-Grade AC Power

• 10kW 200-240V switched rack PDU (rPDU) with 3-phase input
• Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components
• NEMA L21-30P plug with 10-ft. (3.05 m) cord connects to compatible AC power source
• Firmware upgrades support future product enhancements

30 Switched Outlets Distribute AC Power

• 24 C13 and 6 C19 outlets split into 3 separately breakered load banks
• Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
• Plug-lock insert sleeves prevent cables from becoming accidentally disconnected

Color Touchscreen LCD

• Reports network data, including IP address, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy
• Generates unique QR code for read-only access to PowerAlert® Device Manager via mobile device
• Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials

Built-In GbE-Capable LX Interface

• Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
• PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
• IP-based Auto Probe detects lost connectivity and restores service autonomously
• Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
• Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
• No Java required

Broad Communications Compatibility

• Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
• Supports automatic and manual assignment of IP address

Easy 0U Installation in EIA-Standard 19 in. Racks

• Mounts vertically using included toolless buttons or rack-mounting brackets
• Included PDUMVROTATEBRKT allows mounting with rear-facing outlets

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Package Includes

• PDU3EVSR10L2130 10kW 3-Phase Switched PDU
• Built-in LX Platform interface
• Configuration cable
• (30) Plug-lock insert sleeves
• Rack-mounting hardware
• PDUMVROTATEBRKT mounting bracket accessory
• Owner's manual
