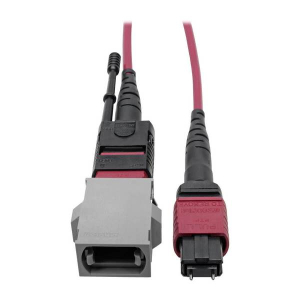

Tripp-Lite N846-08N-A2B MTP/MPO Parallel Optics Base-8 Migration Fiber Adapter, Polarity A to B, 12 Fiber, 40GB/100GB, OM4 M/F, Magenta, 8 in.

Highlights

Adapter patch cable converts legacy 12-fiber MTP/MPO Method A cables to Method B Polarity for compatibility with Parallel Optics fiber mapping in Base-8 40GBASE-SR4 and 100GBASE-SR4 applications.

• Supports speeds up to 40 GbE/100 GbE
• Push/pull tab connector installs/removes with one hand
• 12-fiber MTP/MPO connectors
• 100% tested for low insertion loss and back reflection
• 50/125 duplex glass fiber construction

Features

OM4-Rated for 40 Gb Ethernet Applications

• Designed to extend high-density connections between network equipment in telecommunication rooms and data centers
• Converts legacy 12-fiber Method A Polarity cables to Method B Polarity for use in Base-8 applications
• Supports speeds up to 40 GbE/100 GbE
• Backward compatible with existing 50/125 fiber
• Magenta-colored for identification as an OM4 cable

MTP/MPO Connectors with Push/Pull Tab

• 12-fiber male/female connectors
• Push/pull tab connector easy to install and remove with one hand
• 100% tested for low insertion loss and back reflection

Error-Free Signal Transfer

• 50/125 duplex glass fiber construction
• Meets current IEEE 802.3ae and TIA standards
• Plenum-rated OFNP jacket perfect for ceilings, walls and ducts
• Jacket features serial number for quality control and traceability

Package Includes

• N846-08N-A2B MTP/MPO Parallel Optics Base-8 Migration Fiber Adapter (M/F), Magenta, 8 in.
