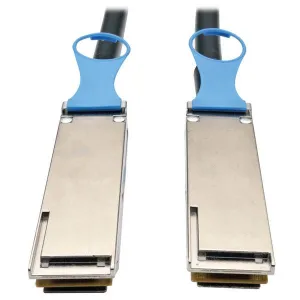

Tripp-Lite N282-20N-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable (M/M) 0.5 m (20 in.)

Combines four SFP channels operating at up to 28 Gpbs into one affordable 100GbE cable. Ideal for data centers, high-end servers and enterprise wiring closets.

Connect Network Equipment at Speeds Up to 100 Gbps

• Combines four 28 Gbps SFP channels into single high-density cable
• Ideal for data centers, high-end servers and enterprise wiring closets
• Multi-platform support for 128G Fibre Channel and EDR InfiniBand
• Lower port cost and power budget when compared to fiber optics

Top-of-the-Line Construction

• 100 GbE 38-position "board-as-connector" design
• Zinc die-cast male QSFP+ connectors for superior EMI resistance
• Ergonomic pull-tab ejectors for quick, easy connections
• 8-pair wire technology optimized for bandwidth-intense applications
• Flexible 26 AWG conductors maintain smooth high-frequency response

Fully Compliant and Compatible

• Meets or exceeds strict 100-Gigabit Ethernet (100GBASE-CR4) standards
• Complies with IEEE 802.3bj and RoHS
• Complies with latest QSFP28 MSA (Multi-Source Agreement) SFF-8665 architecture
• Compatible with all QSFP and QSRP+ ports

System Requirements

• Networking switch or other hardware with open QSFP+ ports

Package Includes

• N282-20N-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable (M/M), 0.5 m (20 in.)

For more information, please see Data Sheet
