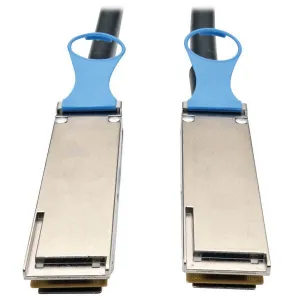

Tripp-Lite N282-01M-28-BK QSFP28 to QSFP28 100GbE Passive DAC Cable (M/M) QSFP-100G-CU1M Compatible 1M (3.28 ft.)

Tripp-Lite N282-01M-28-BK QSFP28 to QSFP28 100GbE Passive DAC Cable (M/M) QSFP-100G-CU1M Compatible 1M (3.28 ft.)
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
Condition: new
Warranty

Overview


Combines four SFP channels operating at up to 28 Gpbs into one affordable 100GbE cable. Ideal for data centers, high-end servers and enterprise wiring closets.

Connect Network Equipment at Speeds Up to 100 Gbps

  • Combines four 28 Gbps SFP channels into single high-density cable
  • Ideal for data centers, high-end servers and enterprise wiring closets
  • Multi-platform support for 128G Fibre Channel and EDR InfiniBand
  • Lower port cost and power budget when compared to fiber optics

Top-of-the-Line Construction

  • 100 GbE 38-position "board-as-connector" design
  • Zinc die-cast male QSFP+ connectors for superior EMI resistance
  • Ergonomic pull-tab ejectors for quick, easy connections
  • 8-pair wire technology optimized for bandwidth-intense applications
  • Flexible 26 AWG conductors maintain smooth high-frequency response

Fully Compliant and Compatible

  • Meets or exceeds strict 100-Gigabit Ethernet (100GBASE-CR4) standards
  • Complies with IEEE 802.3bj and RoHS
  • Complies with latest QSFP28 MSA (Multi-Source Agreement) SFF-8665 architecture
  • Compatible with all QSFP and QSRP+ ports
  • Compatible to Cisco QSFP-100G-CU1M

System Requirements

  • Networking switch or other hardware with open QSFP+ ports

Package Includes

  • N282-01M-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable (M/M), 1 m (3 ft.)

For more information, please see Data Sheet
