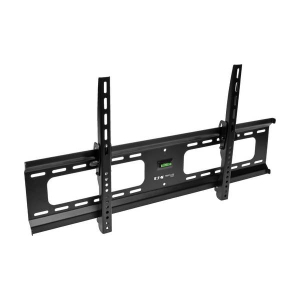

Tripp-Lite DWT3780XUL Heavy-Duty Tilt Wall Mount for 37" to 80" TVs and Monitors Flat or Curved Screens UL Certified

The VESA-compliant DWT3780XUL Heavy-Duty Tilt Wall Mount allows you to mount your flat-panel or curved-screen television, monitor or other display on the wall. Recommended for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most displays from 37 to 80 inches.

A -10° to 0° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Adjusting the tilt angle is simple using the easy-grip twin knobs located on the wall plate.

The mount is concealed behind the display to give a sleek, professional appearance. An open back enables easy access to cabling. Built-in bubble level allows accurate wall plate leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 lbs (74.8 kgs). Mounting hardware included.

Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 800 x 300 mm and 800 x 400 mm

This mount has been tested in accordance with UL Standard 2442.

Mounts Your TV or Monitor to the Wall

• Fits most flat-panel or curved-screen televisions, monitors and other displays from 37 to 80 in.
• Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
• Mounts out of sight behind display for sleek, professional appearance
• Mounting hardware included

Convenient Angle Adjustment

• -10° to 0° tilt capability provides comfortable viewing from multiple angles
• Improves viewing angles in applications where audience is below the display
• Easy-grip knobs allow simple adjustment of tilt angle

Durable Metal Construction

• Supports up to 165 lbs (74.8 kgs)
• Open architecture enables easy access to cabling
• Built-in bubble level for accurate display leveling
• Scratch-resistant powder-coated finish
• Tested in accordance with UL Standard 2442

VESA Compliance

• Supports the following VESA mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 800 x 300 mm and 800 x 400 mm

Package Includes

• Wall plate
• (2) Adapter brackets
• (4) M5 x 14 screws
• (4) M6 x 14 screws
• (4) M6 x 30 screws
• (4) M8 x 30 screws
• (4) M8 x 50 screws
• (4) Washers
• (8) Small spacers
• (8) Big spacers
• (6) Anchor bolts
• (6) Concrete anchors
• (6) D6 washers
• Owner's manual

For more information, please see Data Sheet
