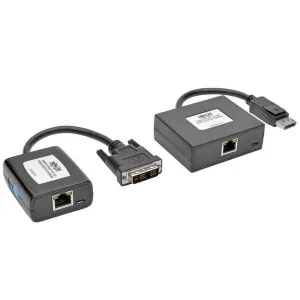

Tripp-Lite B150-1A1-DVI DisplayPort to DVI Over Cat5/6 Active Extender Kit Pigtail Transmitter/Receiver for Video/Audio 125 ft. (38 m) TAA

Tripp-Lite B150-1A1-DVI DisplayPort to DVI Over Cat5/6 Active Extender Kit Pigtail Transmitter/Receiver for Video/Audio 125 ft. (38 m) TAA
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
Condition: new
Warranty

Overview


The B150-1A1-DVI DisplayPort to DVI over Cat5/6 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to convert a DisplayPort audio/video signal to DVI and then extend it to a projector, monitor or television up to 125 feet (38 meters) away. The kit is ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than convention cables allow.

One Cat5e/6 cable connects the transmitter and receiver (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as N202-Series). A built-in DisplayPort plug connects the transmitter to the source, while a built-in DVI-D single-link plug connects the receiver to the display. Included USB Micro-B cables supply power to the units via USB ports on the source and display or USB wall chargers.

Please note: In order to properly power the unit via an external source, a minimum of 500mA will be needed. Any type of power supply will work as well as any standard USB port that is USB 2.0 or newer.

The B150-1A1-DVI can extend a high-definition 1920 x 1080 (60 Hz) signal up to 125 feet. In addition to crystal-clear video, including 24-bit True Color (8 bits per channel), the kit delivers full, rich stereo. LEDs on the RJ45 ports indicate when the units are receiving power and a DVI signal from the source. Built-in equalization control lets you fine-tune the image on the DVI display. Easy to set up with no software or drivers to install. Compatible with all operating systems. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Converts DisplayPort Signal to DVI, Extends It Up to 125-ft. (38.1 m)

  • Ideal for digital signs, trade shows, presentations, classrooms, churches and retail settings
  • Extends a high-definition 1920 x 1080 (60 Hz) signal up to 125-ft. (38.1 m)
  • Transmitter and receiver connect with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as N202-Series)
  • Supports 24-bit True Color (8 bits per channel) and stereo audio
  • Built-in equalization control lets you adjust the image on the display
  • HDCP 1.3 compliant

Easy to Set Up and Use

  • Plug-and-play engineering-no software or drivers to download and install
  • Works with all operating systems
  • Built-in cables connect transmitter to DisplayPort source and receiver to DVI-D display
  • Included USB Micro-B cables provide power to the units
  • LEDs indicate when the units are receiving power and sharing a signal

TAA Compliant

  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

  • Computer with DisplayPort output port*
  • Display with DVI-D input port

*DisplayPort source must be enabled to support audio in order for kit to extend audio signals

Package Includes

  • Transmitter unit
  • Receiver unit
  • Screwdriver for adjusting equalization
  • (2) USB Micro-B cables, 3-ft. (0.91 m)
  • Owner's manual

For more information, please see Data Sheet
