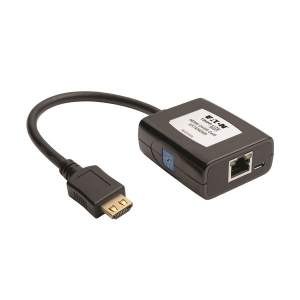

Tripp-Lite B126-1A0-U HDMI Over Cat5/6 Extender Pigtail-Style Receiver for Video/Audio USB Powered Up to 125 ft. (38 m) TAA

The B126-1A0-U HDMI over Cat5/Cat6 Active Extender works with a B126-002 or B126-004 transmitter (sold separately) to extend an HDMI audio/video signal to an HDMI projector, monitor or television. It's ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow. A latching HDMI connector on the built-in cable provides a more secure connection

The receiver's built-in HDMI cable connects to the display. Cat5e/6 cable connects the receiver to the B126-Series transmitter (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as the N202-Series). Power is supplied by the included USB Micro-B to USB-A cable, which connects between the receiver and a USB port on the display or a USB wall charger.

The B126-1A0-U can extend a 1080p ( at 60 Hz) signal up to 125 feet (38.1 meters) with full, rich stereo. Built-in RJ45 LEDs indicate the units are receiving power and a signal from the source. Built-in equalization control lets you fine-tune the image quality at the display. Easy to set up with no software or drivers to install. Works with all operating systems and HDMI sources.

Extends HDMI Audio/Video Signals to an HDMI Display

• Extends a 1080p ( at 60 Hz) signal up to 125-ft. (38.1 m)
• Ideal for digital signs, trade shows, presentations, classrooms, churches and retail settings
• Built-in cable includes latching HDMI connector for a more secure connection
• Connects to transmitter with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as N202-Series)
• Supports stereo audio and HDCP
• Built-in equalization control lets you adjust the image

Easy to Set Up and Use

• Plug-and-play engineering-no software, drivers or external power supply
• Powered via included USB cable
• Connects quickly to display with built-in HDMI cable
• LEDs indicate when units are receiving power and a signal from the source
• Works with all operating systems and HDMI sources

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

• Display with HDMI port

Package Includes

• B126-1A0-U Receiver unit
• USB Micro-B to USB-A cable, 3-ft. (0.91 m)
• Screwdriver for adjusting equalization
• Owner's manual

For more information, please see Data Sheet
