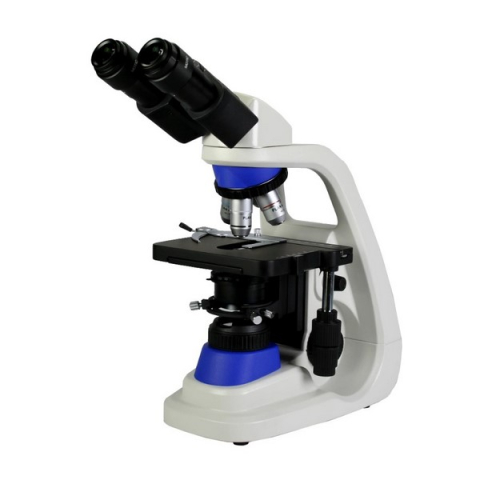

Swift MAX-812PL Compound Research Microscope Binocular Head Siedentopf Type Abbe 1.25 Iris

Swift MAX-812PL Compound Research Microscope Binocular Head Siedentopf Type Abbe 1.25 Iris
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Swift
  • Part #:MAX-812PL
Condition: new
Warranty

Overview

With a wide range of features for university and laboratory use, this advanced research microscope features binocular head, Koehler illumination, and infinity corrected plan optics. Internal 110V-220V auto-switching power supply is built-in. Ergonomically designed, professional frame with low-position coaxial focusing allows one-handed operation, making extended use comfortable.

Features

  • Inward-facing quintuple revolving nosepiece
  • 3W LED Koehler illuminator with intensity control
  • Built-in low-drive mechanical stage (160mm x 140mm) with extended post for X and Y control
  • 20mm eyepieces with rubber eyeshields
  • 30 degree inclined ergonomic viewing head
  • Corrected Infinity Optical System, EC Infinity Plan Achromatic 4X/0.10 (WD 7.18mm), 10X/0.25 (WD 4.8mm), 40X/0.65 (WD 0.68mm), 100X/1.25/S-Oil (WD 0.2mm)
  • Abbe/Iris condenser with slot for contrast slider
