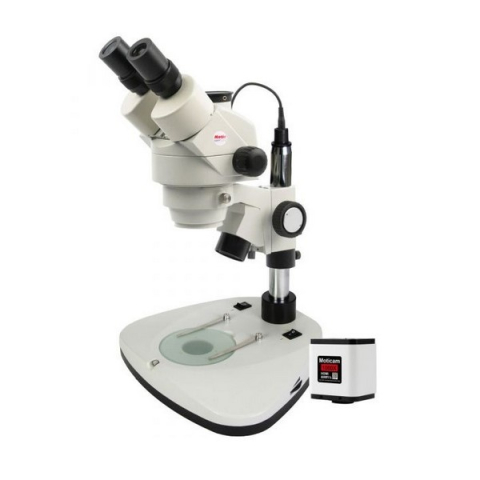

Swift M30TZ-SM99CL-HD M30 Zoom Stereo Microscope (0.75X-4.5X) 3W LED Illumination with HD Moticam 4000 Camera

The M30TZ is ideal for laboratory, industrial and educational use. This stereo microscope features zoom objectives with a continuous magnification range of 7.5X to 40X, offering added versatility that is not an option with fixed power stereo microscopes. Trinocular Port accepts video adapter.

Ideal for higher education and professional settings, M30TZ-SM99CL-HD with included Moticam 4000 offer HD viewing capabilities for direct connection to high definition monitors and televisions.

Magnification

• 0.75X to 4.5X continuous zoom

4K Camera Specifications

• 3840x2160 resolution
• 1/2.8 inch sensor
• HDMI, USB, WiFi5 simultaneous output
• On board measurement, editing and calibration
• Micro SD card slot
• Motic Images Plus software for Computer

Optical System

• Paired widefield eyepieces are 45° inclined, with diopter adjustment. Interpupillary adjustment from 55mm to 75mm.
• Trinocular Port accepts video adapter.
• Interlocked eyepiece tubes with diopter for increased focus acuity.
• Viewing head rotates 360°, locks in place by tightening thumb screw.
• Paired objectives are parfocalled, parcentered, and achromatic.
• Magnification changed by rotating magnification dial.

Illumination

• 3W LED illumination provides bright, white light with virtually no heat.
• Top light adjusts for optimal lighting angles.
• Variable transbase illumination allows user to control brightness.
• Easy-to-replace LED illumination is energy-efficient and rarely requires bulb replacement.
• Dual illumination switches allow for 3 light settings.

Focusing

• Rack and pinion focusing with slip clutch and tension adjustment.
• "Slip-clutch" system prevents users from damaging the focusing mechanism.

Stage

• 100mm reversible black/white plastic contrast plate and 100mm frosted glass stage plate.
• Locked-on stage clips.

Frame

• Rugged, cast metal frame.
• Heavy-duty post mount with locking support collar, permits up or down adjustment of viewing head to accommodate different sized objects on stage.

Packing

• Molded styrofoam container with eyeshields and vinyl dustcover.
