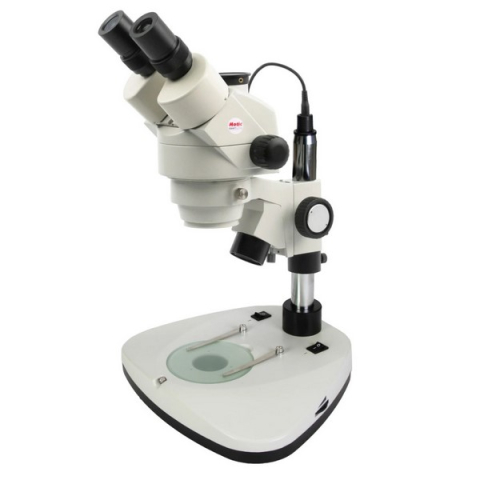

Swift M30TZ-SM99CL M30 Zoom Stereo Microscope (0.75X-4.5X) 3W LED Illumination

The M30TZ is ideal for laboratory, industrial and educational use. This stereo microscope features zoom objectives with a continuous magnification range of 7.5X to 40X, offering added versatility that is not an option with fixed power stereo microscopes. Trinocular Port accepts video adapter.

Magnification

• 0.75X to 4.5X continuous zoom

Optical System

• Paired widefield eyepieces are 45° inclined, with diopter adjustment. Interpupillary adjustment from 55mm to 75mm.
• Trinocular Port accepts video adapter.
• Interlocked eyepiece tubes with diopter for increased focus acuity.
• Viewing head rotates 360°, locks in place by tightening thumb screw.
• Paired objectives are parfocalled, parcentered, and achromatic.
• Magnification changed by rotating magnification dial.

Illumination

• 3W LED illumination provides bright, white light with virtually no heat.
• Top light adjusts for optimal lighting angles.
• Variable transbase illumination allows user to control brightness.
• Easy-to-replace LED illumination is energy-efficient and rarely requires bulb replacement.
• Dual illumination switches allow for 3 light settings.

Focusing

• Rack and pinion focusing with slip clutch and tension adjustment.
• "Slip-clutch" system prevents users from damaging the focusing mechanism.

Stage

• 100mm reversible black/white plastic contrast plate and 100mm frosted glass stage plate.
• Locked-on stage clips.

Frame

• Rugged, cast metal frame.
• Heavy-duty post mount with locking support collar, permits up or down adjustment of viewing head to accommodate different sized objects on stage.

Packing

• Molded styrofoam container with eyeshields and vinyl dustcover.
