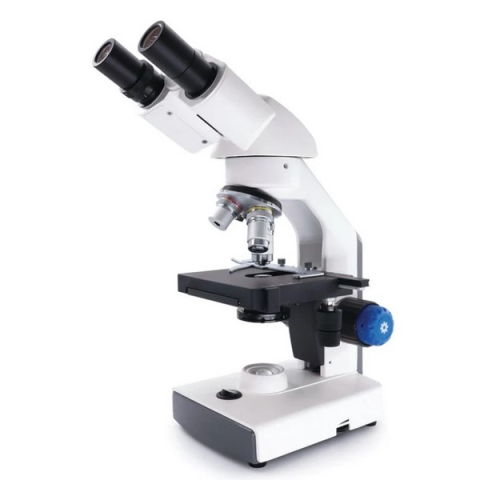

Swift M2652CB-4 M2650 Binocular Cordless LED Microscope WF10X 18mm with Dimmer Switch 4X 10X 40X 100X DIN Achromat Abbe 1.25 Iris

The M2652CB-4 is an advance binocular educational microscope.  This microscope features a Siedentopf binocular head, low-drive mechanical stage, spring specimen holder, easy to use coaxial focusing system, and 1.25 condenser.

M2652CB-4 is also rechargeable, with cool and efficient dimmable LED illumination.

Optical System

• (2) WF10x /18mm eyepieces.
• Siedentopf binocular viewing head with 30° inclined eyepieces. 55-75mm IPD.
• DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.), and 100xR (1.25 N.A.) achromatic objectives.
• Four-hole nose piece is ball-bearing mounted for smooth, precise positioning of objectives.

Illumination

• Variable LED light provides bright, white illumination.
• 8 hour recharge allows for up to 40hrs of use.

Electrical

• 110V - 220V switching power supply, unit shipped with American plug.

Focusing

• Coaxial coarse and fine focusing controls.
• Fine focus knob is graduated.
• Safety rack stop prevents damage to slides and objective lenses

Stage

• Large 120mm x 120mm low-drive mechanical stage.
• Spring loaded specimen holder.
• Built-in 1.255 N.A. condenser with iris diaphragm
• Upper limit adjustable rack stop

Frame

• Base dimensions: 7-1/2  in. x 5-1/4 in. (191mm x 134mm)
• Height: 14-1/4 in. (362mm). Net wt. 6 lbs (2.72 kgs)

Packing

• Head and frame in molded styrofoam container with vinyl dustcover.
