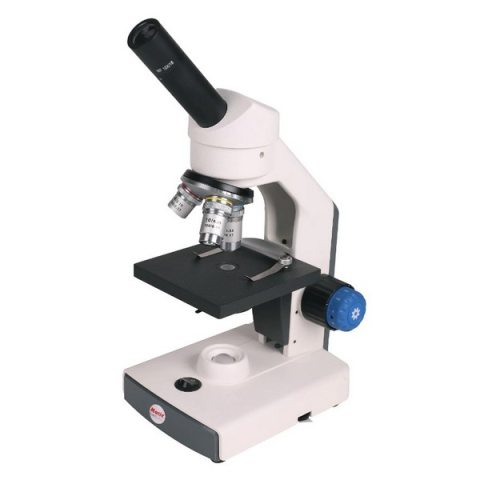

Swift M2651C M2650 Monocular Cordless LED Microscope WF10X 18mm with Dimmer Switch 4X 10X 40X DIN Achromat Built-in N.A. 0.65 with Disc

The M2651C is ideal for a wide variety of educational applications. This series has locked-on one touch stage clips, eyepiece, objectives and easy to use coaxial focusing system.

M2651C is rechargeable, with cool and efficient dimmable LED illumination.

Optical System

• WF10x /18mm eyepiece.
• Monocular viewing head with 45° inclined eyepiece.
• DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.) and 40xR (0.65 N.A.) achromatic objectives.
• Three-hole nose piece is ball-bearing mounted for smooth, precise positioning of objectives.

Illumination

• Variable LED light provides bright, white illumination.
• 8 hour recharge allows for up to 40hrs of use.

Electrical

• 110V - 220V switching power supply, unit shipped with American plug.

Focusing

• Coaxial coarse and fine focusing controls.
• Fine focus knob is graduated.
• Safety rack stop prevents damage to slides and objective lenses

Stage

• Large 4-3/4 in. x 4-1/4 in. (120mm x 110mm) stage.
• One-Touch spring stag clips
• Built-in 0.65 N.A. condenser with iris diaphragm

Frame

• Base dimensions: 7-1/2  in. x 5-1/4 in. (191mm x 134mm)
• Height: 14-1/4 in. (362mm). Net wt. 5  lbs (2.27 kgs)

Packing

• Head and frame in molded styrofoam container with vinyl dustcover.
