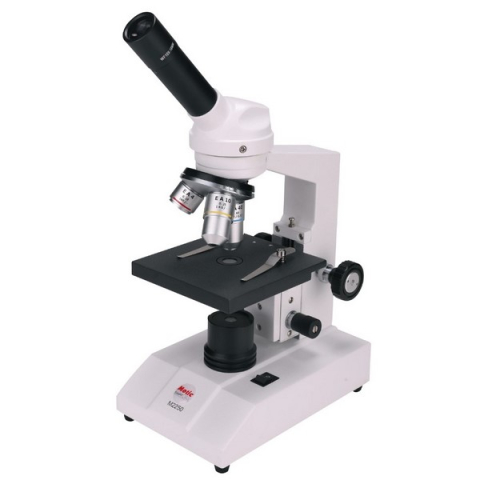

Swift M2251C M2250 Monocular Cordless LED Microscope W10XD 18mm 4XD 10XD 40XD DIN Achromat

The M2250 Series is ideal for a wide variety of educational applications and built to withstand student use. This series has locked-on stage clips, eyepiece, objectives (sealed 40x) and a "slip-clutch" focusing system to protect gears from over-focusing.

M2251C is supplied with cool and efficient LED illumination.

Optical System

• Widefield 10x /18mm eyepiece.
• Monocular viewing head with 45° inclined eyepiece.
• DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.) and 40xR (0.65 N.A.) achromat objectives. All are parfocalled, parcentered and color-coded.
• Three-hole nose piece is ball-bearing mounted for smooth, precise positioning of objectives.

Illumination

• LED light provides bright, white illumination.
• LED technology provides cool, energy-efficient light for up to 50,000 hours

Electrical

• 110V - 220V switching power supply - American Plug
• Rechargeable Batteries

Focusing

• Low position coarse and fine focusing controls.
• Stage moves up or down, eyepiece and body remain fixed.
• Slip clutch prevents damage to focusing system.
• Tension adjustment eliminates stage drift.
• Safety rack stop prevents damage to slides and objective lenses

Stage

• Large 4-3/4 in. x 4-1/2 in. (120mm x 115mm) stage, with locked-on, spring mounted stage clips, drilled and tapped to accept optional mechanical stage.
• Built-in 0.65 N.A. special condenser lens

Frame

• Cord hangers.
• Base dimensions: 8 in. x 5-1/4 in. (201mm x 131mm)
• Height: 14-1/4 in. (362mm). Net wt. 6.8 lbs (15 kgs)

Packing

• Head and frame in molded styrofoam container with vinyl dustcover.
