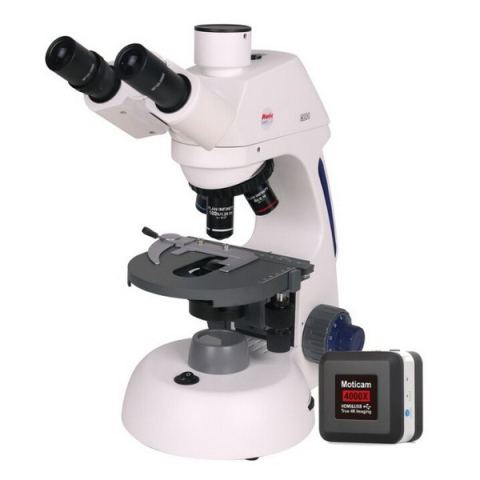

Swift M18T-HD-P M18 Trinocular Corded LED Microscope with HD Camera D-Moticam 4000 Corded 3W LED Koehler 4XD 10XD 40XRD 100XRD Inf. Corrected Plan

The M18 compound microscope series features infinity corrected optics and is ideal for college laboratories, veterinary, and medical applications. With trinocular heads, this research level microscope also incorporates energy-efficient Koehler illumination and wide field 20 mm eyepieces for a very crisp image. Included Moticam 4000X turns your microscope into an instant multimedia learning platform.

Turn your microscope into a digital multimedia platform with these microscope/camera bundles!

Ideal for higher education and professional settings, this microscope with included Moticam 4000 offer HD viewing capabilities for direct connection to high definition monitors and televisions.

4K Camera Specifications

• 3840x2160 resolution
• 1/2.8 inch sensor
• HDMI, USB, WiFi5 simultaneous output
• On board measurement, editing and calibration
• Micro SD card slot
• Motic Images Plus software for Computer

Optical System

• Widefield 10x /20mm eyepieces
• Trinocular viewing head with 30° inclined eyepieces, with diopter and interpupillary adjustment 54mm to 76mm
• Infinity corrected 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) objectives. (Only the 100xR objective is oil immersion.) PLAN lenses. All are parfocalled, parcentered and color-coded
• Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives. Mounted in reverse position to facilitate ease in changing slides

Illumination

• Koehler
• Illumination on/off switch

Electrical

• 110V - 220V switching power supply, unit shipped with American plug

Focusing

• Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated

Stage

• Large 5-3/4 in. x 5-1/2 in. (142mm x 140mm) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls
• 1.25 N.A. Abbe condenser has rack & pinion focusing and iris diaphragm

Frame

• Base dimensions: 10-1/4 in. x 6-3/4 in. (261mm x 172mm)
• Height: 22 in. (559mm). Net wt. 30.9 lbs (14.0 kgs)

Packing

• Head and frame in molded styrofoam container with vinyl dustcover
