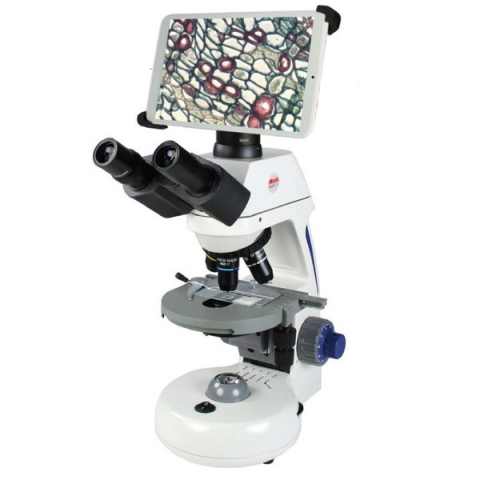

Swift M18T-BTI1-P M18 Swift Optical Advanced Microscope with 8" Tablet Corded 3W LED Koehler W10XD 20mm 4XD 10XD 40XRD 100XRD Infinity Corrected Plan

Motic Swift Line's BTI Series represents the latest in educational technology. Capable of sharing images with MoticHub using your existing wireless network. Android-based tablet includes preloaded Motic apps.

The BTI Series feature high-speed, full resolution imaging technology built into one of most popular microscopes. Use it as a conventional microscope or share live images with your class using WiFi tablets, wireless laptops, and HD-ready LCD monitors/projectors through HDMI.

Optical System

• Widefield 10x /20 mm eyepieces
• Trinocular viewing head with 30° inclined eyepieces, with diopter and interpupillary adjustment 54 mm to 76 mm
• Infinity corrected 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) objectives. (Only the 100xR objective is oil immersion.) PLAN lenses. All are parfocalled, parcentered and color-coded
• Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives
• Mounted in reverse position to facilitate ease in changing slides

Illumination

• Koehler
• Illumination on/off switch

Electrical

• 110V - 220V switching power supply, unit shipped with American plug

Focusing

• Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated

Packing

• Head and frame in molded styrofoam container with vinyl dustcover
