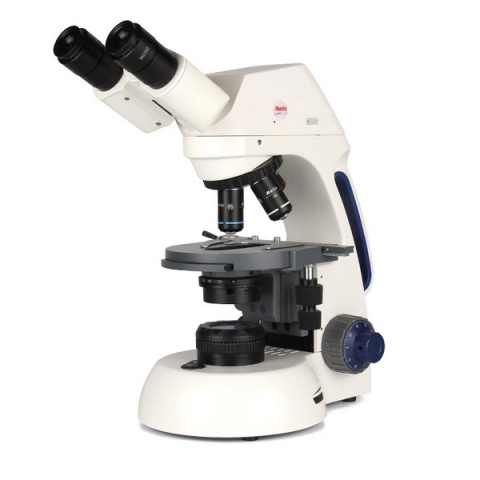

Swift M18B-P M18 Binocular Corded LED Microscope Corded 3W LED Koehler W10XD 20mm 4XD 10XD 40XRD 100XRD Infinity Corrected Plan

The M18 compound microscope series features infinity corrected plan optics, ideal for college laboratories, veterinary and medical applications. Supplied with binocular head, this research level microscope also incorporates Koehler illumination and wide field 20mm eyepieces for a very crisp image.

4K Camera Specifications

• 3840x2160 resolution
• 1/2.8 inch sensor
• HDMI, USB, WiFi5 simultaneous output
• On board measurement, editing and calibration
• Micro SD card slot
• Motic Images Plus software for Computer

Optical System

• Widefield 10x /20mm eyepieces
• Binocular viewing head with 30° inclined eyepieces, with diopter and interpupillary adjustment 54mm to 76mm
• Infinity corrected 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) objectives. (Only the 100xR objective is oil immersion.) PLAN lenses. All are parfocalled, parcentered and color-coded
• Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives. Mounted in reverse position to facilitate ease in changing slides

Illumination

• Koehler
• Illumination on/off switch

Electrical

• 110V - 220V switching power supply, unit shipped with American plug

Focusing

• Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated

Stage

• Large 5-3/4 in. x 5-1/2 in. (142mm x 140mm) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls
• 1.25 N.A. Abbe condenser has rack & pinion focusing and iris diaphragm

Frame

• Base dimensions: 10-1/4 in. x 6-3/4 in. (261mm x 172mm)
• Height: 14-1/2 in. (369mm). Net wt. 30.9 lbs (14.0 kgs)

Packing

• Head and frame in molded styrofoam container with vinyl dustcover
