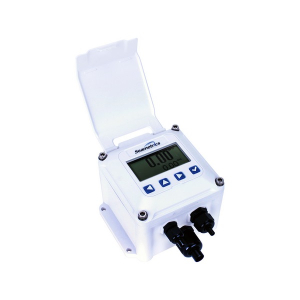

Seametrics FT430W FT400-Series DC Powered Rate/Total Indicator Wall Mount
- Specification
- Overview
- Accessories
- Main Products
- Customers Also Bought
- Your Recently Viewed Items
- Reviews
Overview
The FT430 flow computers are microcontroller-based indicator/transmitters that interface with pulse output flow sensors to compute and display flow rate, flow total, and also generate output signals representing flow. The FT430 has one scaled pulse output and one pulse pass through.
The FT430 may be powered by an external DC power source or an optional internal AC power supply (Internal power supply is available for the wall mount option only).
Pulse and 4-20 mA analog outputs can be used to signal external devices, e.g. certain metering pumps and water treatment controls. Alternatively, one or more pulse outputs can be configured as alarm outputs. These flow computers can be password protected to prevent resetting the total or changing configuration settings.
The FT430 indicators are available in wall and meter mount configurations. The FT430 model can also be panel mounted.
Features
- Simple Setup
- DC Powered (FT430)
- Loop Powered (FT440)
- Battery Powered (FT450)
- Remote or Flow Sensor Mounted
- Indicator
- Rugged Plastic Housing
- Non-volatile Memory
- Data Logging (Optional)
- Sensus Smart Output (Optional)
Options
- Tamper-evident
- Non-resettable total
- Dual Relay Output
- Display Cover
- Internal Data Logger
- Built-in 120/240 Vac/12/24 Vdc dual power supply
- Built-in 120/240 Vac/12 Vdc single power supply (FT430W for use with mechanical or magmeters)
- Sensus Smart Output (Includes 6' Cable)
For more information, please see Data Sheet and Manual
