40700-085 Dual Volt Pilot Light by Rees

00 Reviews Write review
40700-085 Dual Volt Pilot Light by Rees
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Rees
  • Part #:40700-085
  • SKU:ID105689
Condition: new

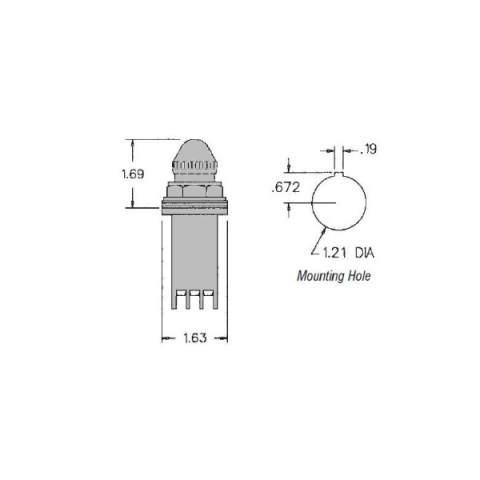

The pilot light body is made from polycarbonate and is sonically welded together.  The chrome plated zinc die cast housing will mount in a standard 30.5mm hole.  Each captive terminal on the terminal block will accept (2) # 14 AWG stranded wires.

  •   NEMA 12/13, IP 65
  •   CSA certified only

These lights are generally found on machine control panels as circuit/function indicators.

Replacement lamps and lenses can be found in the accessories section for 30.5mm devices.

Electrical RatingsListed under UL 508 - File # E 58589Certified under CSA C22.2 - File # LR 3648

Environmental Temperature Range

Operating:  +32oF to +131oF (0oC to +55oC)

Storage:  -40oF to +185oF (-40oC to +85oC)

Note:  Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.
