40067-002 30.5 mm Mushroom and Rope Pull Operator, Red by Rees

00 Reviews Write review
40067-002 30.5 mm Mushroom and Rope Pull Operator, Red by Rees
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Rees
  • Part #:40067-002
  • SKU:ID105705
Condition: new
Warranty

Overview

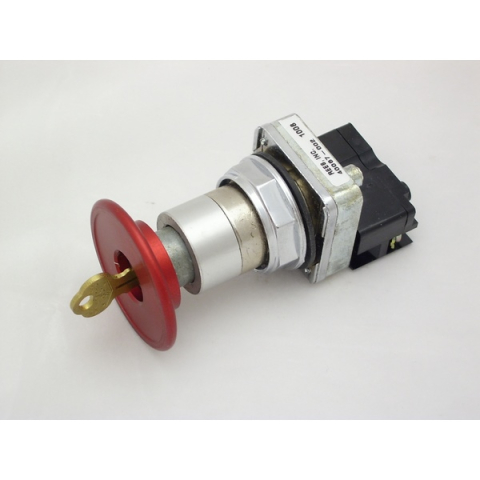

The following switch is a hand operated, control circuit device, rated ‘Heavy Duty' normally for use with electromagnetic equipment.  The body is made from die-cast zinc.  The flat plungers are made from red anodized aluminum.

  • Key lockable when depressed
  • Nema 12/13, IP 65
  • Gold Plated Contacts

Each operator will accept up to three tiers of two contact blocks for a total of six separate blocks.  Each operator is supplied with all mounting hardware and a solid neoprene rubber gasket which provides an oil tight seal upon installation.  The mechanical life of this unit is 1,000,000 operations.

Electrical Ratings

HEAVY DUTY - A600 / N150

Environmental Temperature Range

Operating:  +32oF to +131oF (0oC to +55oC)

Storage:  -40oF to +185oF (-40oC to +85oC)

Note:  Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING - DANGER

These products should only be used where point-of-operation guarding devices have been properly installed and maintained so that appropriate OSHA and ANSI B11.1 regulations and standards are met.  Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
