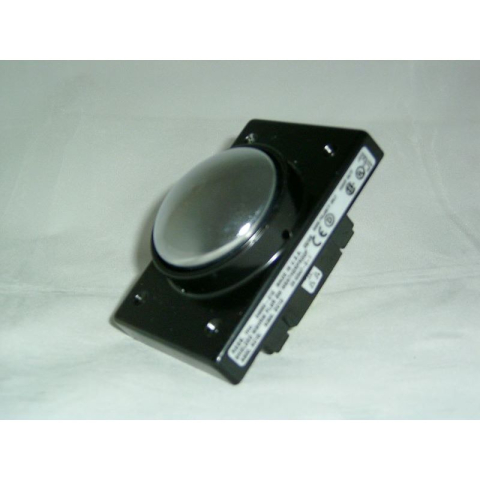

04960-212 2.25" Mushroom Plunger with Shield and Weatherproof, Operating Force 2.5 lb by Rees

00 Reviews Write review
04960-212 2.25" Mushroom Plunger with Shield and Weatherproof, Operating Force 2.5 lb by Rees
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Rees
  • Part #:04960-212
Condition: new
Warranty

Overview


Features:

The following switch is a weatherproof hand operated, control circuit device, rated 'Heavy Duty' normally for use with electromagnetic equipment. The black cover with shield and painted with a dry powder paint, is made from die-cast zinc. The plunger head is chrome plated steel.

  • Gold plated contacts eliminate high resistance tarnishing
  • Nema 4, IP 66

Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with all mounting hardware and a solid santoprene rubber gasket which provides an oil tight seal upon installation. The mechanical life of this device is 1,000,000 operations.

This switch can be found on a variety of machines such as punch presses, press brakes, and spot-welding equipment as "RUN" , "START" or "STOP" buttons. They are even found in parking garages and car wash applications. Its rugged construction and long term reliability make this switch extremely well suited to function within various industrial/commercial environments.

Electrical Ratings:

  • "HEAVY DUTY - A600 / N300"
  • Listed under UL 508 - File # E 58589
  • Certified under CSA C22.2 - File # LR 3648
  • CE Compliant IEC/EN 60947-5-1

Environmental Temperature Range:

  • Operating: -22°F to +131°F (-30°C to +55°C)
  • Storage: -40°F to +185°F (-40°C to +85°C)
  • Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING

These products should only be used where point-of-operation guarding devices have been properly installed & maintained so that appropriate OSHA and ANSI B11.1 regulations & standards are met. Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
