Overview

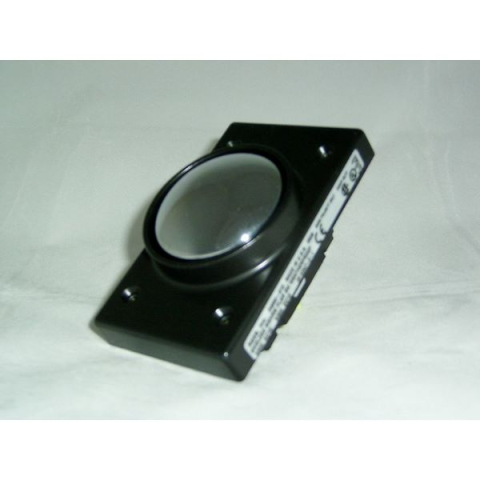

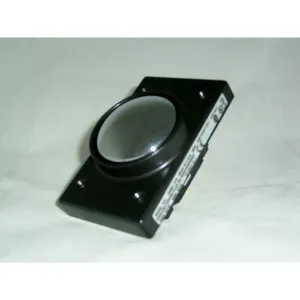

The following weatherproof switch is a hand operated, control circuit device, rated 'Heavy Duty' normally for use with electromagnetic equipment.  The black cover with shield and painted with a dry powder paint, is made from die-cast zinc.  The plunger head is chrome plated steel.

  • Gold plated contacts eliminate high resistance tarnishing
  • Tamper resistant cover screws
  • Nema 4, IP 66

Each captive terminal will accept (2) #14 AWG stranded wires.  Each switch is supplied with all mounting hardware and a solid santoprene rubber gasket which provides an oil tight seal upon installation.  The mechanical life of this device is 1,000,000 operations.

This switch can be found on a variety of machines such as punch presses, press brakes, and spot-welding equipment as 'RUN', 'START' or 'STOP' buttons. They are even found in parking garages and car wash applications.

They also are used for 'Pedestrian Cross-walks' and even found in parking garages and car wash applications.  These models comply with ADA guidelines defined in Federal Register Vol. 59, No. 117, Section 14.2.5 'Pedestrian Street Crossings'.

Its rugged construction and long term reliability make this switch extremely well suited to function within various industrial/commercial environments.

This model comes with tamper resistance cover screws.

Electrical Ratings

HEAVY DUTY - A600 / N300

Listed under UL 508 - File # E 58589

Certified under CSA C22.2 - File # LR 3648

CE Compliant IEC/EN 60947-5-1

Environmental Temperature Range

Operating: +22oF to +131oF (-30oC to +55oC)

Storage: -40oF to +185oF (-40oC to +85oC)

Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING - DANGER

These products should only be used where point-of-operation guarding devices have been properly installed and maintained so that appropriate OSHA and ANSI B11.1 regulationsand standards are met.  Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
