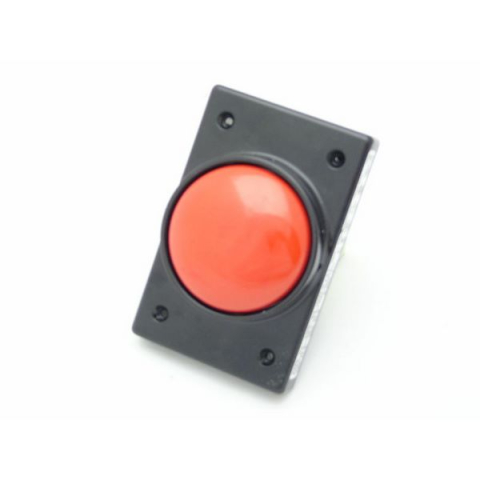

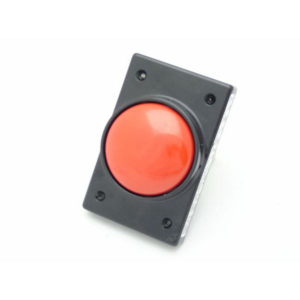

04960-602 2.25" Mushroom Plunger with Shield and Weatherproof, Red Plunger by Rees

00 Reviews Write review
04960-602 2.25" Mushroom Plunger with Shield and Weatherproof, Red Plunger by Rees
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Rees
  • Part #:04960-602
  • SKU:ID105736
Condition: new
Warranty

Overview


The following switch is a weatherproof hand operated, control circuit device, rated 'Heavy Duty' normally for use with electromagnetic equipment.  The black with shield and painted with a dry powder paint, is made from die-cast zinc.  The red plunger head is powder painted steel.

  • Gold plated contacts eliminate high resistance tarnishing
  • Nema 4, IP 66

Each captive terminal will accept (2) #14 AWG stranded wires.  Each switch is supplied with all mounting hardware and a solid santoprene rubber gasket which provides an oil tight seal upon installation.  The mechanical life of this device is 1,000,000 operations.

This switch can be found on a variety of machines such as punch presses, press brakes, and spot-welding equipment as 'RUN', 'START' or 'STOP' button. They are even found in parking garages and car wash applications.  Its rugged construction and long term reliability make this switch extremely well suited to function within various industrial/commercial environments.

Electrical Ratings

HEAVY DUTY - A600 / N300

Listed under UL 508 - File # E 58589

Certified under CSA C22.2 - File # LR 3648

CE Compliant IEC/EN 60947-5-1

Environmental Temperature Range

Operating: +22oF to +131oF (-30oC to +55oC)

Storage: -40oF to +185oF (-40oC to +85oC)

Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING - DANGER

These products should only be used where point-of-operation guarding devices have been properly installed and maintained so that appropriate OSHA and ANSI B11.1 regulations and standards are met.  Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
