Rees 04957-012 Flat Chrome Plunger Push Button Switch, 1.9 lb Operating Force

Features:

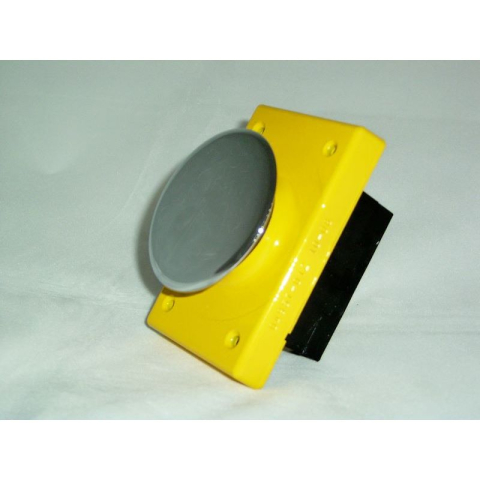

The following switch is a hand operated, control circuit device, rated 'Heavy Duty' normally for use with electromagnetic equipment. The powder coat painted yellow cover and chrome plated flat plunger are made from die-cast zinc.

• Auxiliary rubber boot under plunger head
• Low operating force - under 2 lbs.
• Ergonomic Design
• Gold plated contacts eliminate high resistance tarnishing
• Nema 12/13, IP 65

Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with all mounting hardware and a solid santoprene rubber gasket which provides an oil tight seal upon installation. The mechanical life of this device is 1,000,000 operations.

This switch can be found on a variety of machines such as punch presses, press brakes, and spot-welding equipment as "RUN" or "START" buttons. Its rugged construction and long term reliability make this switch extremely well suited to function within various environments.

Electrical Ratings:

• "HEAVY DUTY - A600 / N300"
• Listed under UL 508 - File # E 58589
• Certified under CSA C22.2 - File # LR 3648
• CE Compliant IEC/EN 60947-5-1

Environmental Temperature Range:

• Operating: +32°F to +131°F (0°C to +55°C)
• Storage: -40°F to +185°F (-40°C to +85°C)
• Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING

These products should only be used where point-of-operation guarding devices have been properly installed & maintained so that appropriate OSHA and ANSI B11.1 regulations & standards are met. Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
