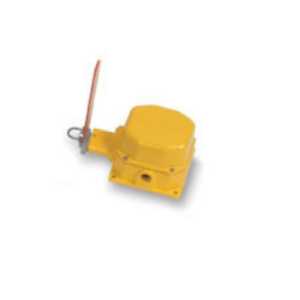

04953-442 Cable Operated Switch with Flag, 2 NO+2 NC by Rees

00 Reviews Write review
04953-442 Cable Operated Switch with Flag, 2 NO+2 NC by Rees
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Rees
  • Part #:04953-442
Condition: new
Warranty

Overview


Features:

The following "slack cable" style switch has 2 NO and 2 NC contacts. This switch is particularly competent for use in Emergency Stop applications as well as for ordinary circuit control.

The housing is made from high quality die-cast aluminum and powder coated painted yellow. The independently operating red indicating flag rotates 90 degrees when tripped. Manually returning the flag to its normal position resets the switch.

  • Manual reset with "Positive Break" contacts
  • Gold plated contacts eliminate high resistance tarnishing
  • Left Hand Pull
  • Nema 4X (indoor), IP 66

Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with a fibreflex gasket which provides an oil tight seal upon installation. For added protection against corrosive environments a neoprene gasket is available as an accessory item by ordering part number 02005-540.

There are two 1/2 NPT conduit openings. The maximum cable recommended cable length is 200 feet with a maximum interval support of 10 feet.

The mechanical life of the switch is 150,000 operations.

This switch can be installed on various conveyor installations and provides a constant access for emergency or normal stopping.

This switch is not UL Listed or CSA Certified.

The rugged construction and long term reliability makes this cable pull switch well suited to function various industrial environments.

Electrical Ratings:

  • "HEAVY DUTY - A600 / N300"
  • CE Compliant IEC/EN 60947-5-1

Environmental Temperature Range:

  • Operating: +32°F to +131°F (0°C to +55°C)
  • Storage: -40°F to +185°F (-40°C to +85°C)
  • Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

Features:

The following "slack cable" style switch has 2 NO and 2 NC contacts. This switch is particularly competent for use in Emergency Stop applications as well as for ordinary circuit control.

The housing is made from high quality die-cast aluminum and painted with a white powder coating that has no residual heavy metals and contains no lead or reactive materials that may be considered unsafe in food.

  • Manual Reset with "Positive Break" contacts
  • Gold plated contacts eliminate high resistance tarnishing
  • Nema 4X (indoor), IP 66
  • May be mounted for right or left hand pull

Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with a santoprene gasket, which provides an oil tight seal upon installation and protects against corrosive environments.

There are two 1/2" NPT conduit openings. The maximum cable recommended cable length is 200 feet with a maximum interval support of 10 feet.

The mechanical life of the switch is 150,000 operations.

This switch can be installed on various conveyor installations, particularly those requiring constant starting and stopping operations.

The rugged construction and long term reliability makes this cable pull switch well suited to function within various environments, including food processing areas, without direct contact to

the product.

Electrical Ratings:

  • "HEAVY DUTY - A600 / N300"
  • CE Compliant IEC/EN 60947-5-1

Environmental Temperature Range:

  • Operating: +32°F to +131°F (0°C to +55°C)
  • Storage: -40°F to +185°F (-40°C to +85°C)
  • Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING

These products should only be used where point-of-operation guarding devices have been properly installed & maintained so that appropriate OSHA and ANSI B11.1 regulations & standards are met. Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
