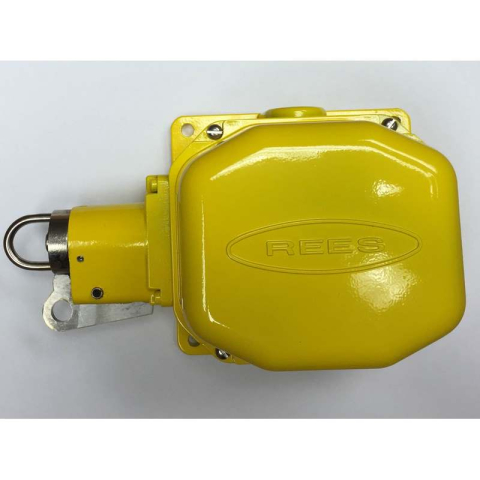

04953-142 Cable Operated Switch with Latch Plates by Rees

00 Reviews Write review
04953-142 Cable Operated Switch with Latch Plates by Rees
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Rees
  • Part #:04953-142
  • SKU:ID94500
Condition: new
Warranty

Overview


Features:

The following "slack cable" style switch has 2 NO and 2 NC contacts. This switch is particularly competent for use in Emergency Stop applications as well as for ordinary circuit control.

The housing is made from high quality die-cast aluminum and powder coated painted yellow. The latch plate on this switch engages when switch is tripped. Pulling on rope or cable attached to the latch plate will reset the switch.

  • Manual reset with "Positive Break" contacts
  • Gold plated contacts eliminate high resistance tarnishing
  • Left Hand Pull
  • Nema 4X (indoor), IP 66

Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with a fibreflex gasket which provides an oil tight seal upon installation. For added protection against corrosive environments a neoprene gasket is available as an accessory item by ordering part number 02005-540.

There are two 1/2 NPT conduit openings. The maximum cable recommended cable length is 200 feet with a maximum interval support of 10 feet.

The mechanical life of the switch is 150,000 operations.

This switch can be installed on various conveyor installations and provides a constant access for emergency or normal stopping. Ideally suited for overhead installations.

The rugged construction and long term reliability makes this cable pull switch well suited to function within various environments.

Electrical Ratings:

  • "HEAVY DUTY - A600 / N150"
  • Listed under UL 508 - File # E 58589
  • Certified under CSA C22.2 - File # LR 3648
  • CE Compliant IEC/EN 60947-5-1

Environmental Temperature Range:

  • Operating: +32°F to +131°F (0°C to +55°C)
  • Storage: -40°F to +185°F (-40°C to +85°C)
  • Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING

These products should only be used where point-of-operation guarding devices have been properly installed & maintained so that appropriate OSHA and ANSI B11.1 regulations & standards are met. Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
