Overview


The following "slack cable" style switch has 2 NO, "Slow-Make" contacts for use in normal start-stop applications.  This switch does NOT latch in any position and should only be used for non-emergency applications.

The action of this switch is that when the switch actuating arm is pulled by a cable the switch the NO contacts will close.  When the force on the cable is removed from the actuator arm, spring pressure will return it to its normal position, while the contacts are held in position through a ratchet mechanism.  The next time the cable is pulled, the action is repeated and the contacts return to their original state.

The housing and cover are made from a glass filled black polycarbonate.  The mounting base and double end actuator arm are die cast from a high strength zinc alloy powder coat painted white.

The following "slack cable" style switch has 2 NO, "Slow-Make" contacts for use in normal start-stop applications.  This switch does NOT latch in any position and should only be used for non-emergency applications.

The action of this switch is that when the switch actuating arm is pulled by a cable the switch the NO contacts will close.  When the force on the cable is removed from the actuator arm, spring pressure will return it to its normal position, while the contacts are held in position through a ratchet mechanism.  The next time the cable is pulled, the action is repeated and the contacts return to their original state.

The housing and cover are made from a glass filled black polycarbonate.  The mounting base and double end actuator arm are die cast from a high strength zinc alloy powder coat painted white.

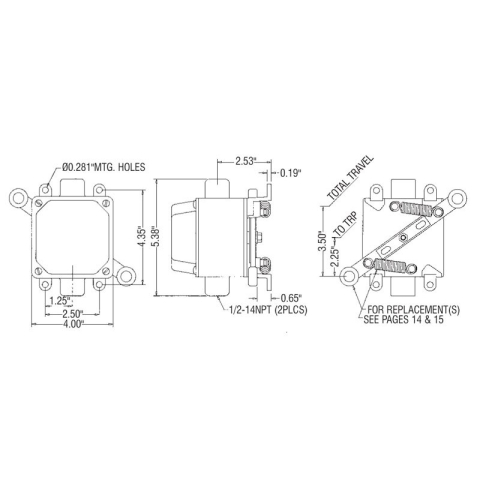

There are two 12 'NPT conduit openings.  The maximum cable recommended cable length is 200 feet with a maximum interval support of 10 feet.

The mechanical life of the switch is in excess of 150,000 mechanical and 1,000,000 electrical operations.

This type of device can be found on various conveyor installations as well as other stations that require the "pull-on", "pull-off" function.

The rugged construction and long term reliability makes this cable pull switch well suited to function within various environments.

Not UL Listed or CSA approved.  Contact blocks are UL Listed and CSA Approved.

WARNING - DANGER

These products should only be used where point-of-operation guarding devices have been properly installed and maintained so that appropriate OSHA and ANSI B11.1 regulations and standards are met.  Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
