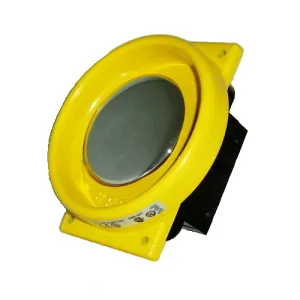

04917-212 Push Button Switch with Larger Mounting Pattern, Operating Force 3.5 Lb by Rees

00 Reviews Write review
04917-212 Push Button Switch with Larger Mounting Pattern, Operating Force 3.5 Lb by Rees
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Rees
  • Part #:04917-212
  • SKU:ID94566
Condition: new
Warranty

Overview


Features:

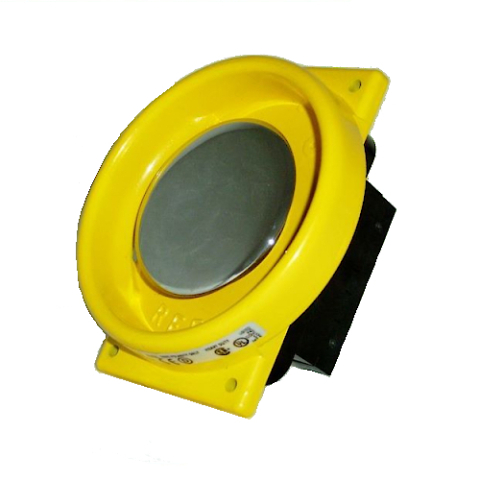

The following switch is a hand operated, control circuit device, rated 'Heavy Duty' normally for use with electromagnetic equipment. The yellow cover, is painted with a dry powder paint, and made from die-cast zinc. The plunger head is chrome plated die-cast zinc. This switch has a larger mounting pattern and can be mounted in Rees 04938 series enclosures found in Accessories and Associated Control Switches.

  • Integral ring guard
  • Gold plated contacts eliminate high resistance tarnishing
  • NEMA 12/13, IP65

Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with all mounting hardware and a solid santoprene rubber gasket which provides an oil tight seal upon installation. The mechanical life of this device is 1,000,000 operations.

This switch can be found on a variety of machines such as punch presses, press brakes, and spot-welding equipment as "RUN", "START" or "STOP" buttons. It is also used on transfer machines. Its rugged construction and long term reliability make this switch extremely well suited to function within various industrial / commercial environments.

Electrical Ratings:

  • "HEAVY DUTY - A600 / N300"
  • Listed under UL 508 - File # E 58589
  • Certified under CSA C22.2 - File # LR 3648
  • CE Compliant IEC/EN 60947-5-1

Environmental Temperature Range:

  • Operating: +32°F to +131°F (0°C to +55°C)
  • Storage: -40°F to +185°F (-40°C to +85°C)
  • Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING

These products should only be used where point-of-operation guarding devices have been properly installed & maintained so that appropriate OSHA and ANSI B11.1 regulations & standards are met. Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
