04910-125 Rotary Contact Selector Switch, Special Features "Lock"-Unlock by Rees

00 Reviews Write review
04910-125 Rotary Contact Selector Switch, Special Features "Lock"-Unlock by Rees
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Rees
  • Part #:04910-125
  • SKU:ID94569
Condition: new

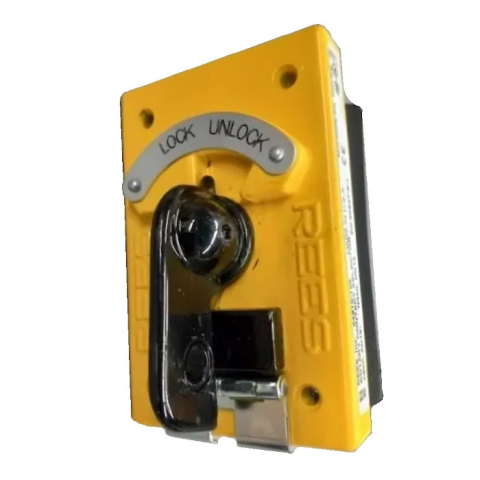

  • The following switch is a hand operated, control circuit device, rated 'Heavy Duty' normally for use with electromagnetic equipment. The body and wing lever is made from die-cast zinc and painted with a dry powder paint.
  • Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with all mounting hardware and a solid santoprene rubber gasket which provides an oil tight seal upon installation. The mechanical life of this device is 500,000 operations.
  • This switch can be found on a variety of machinery. Its rugged construction and long term reliability make this switch extremely well suited to function within various industrial conditions.
  • This switch is custom built requiring an extended lead time. Please contact us for price and delivery.

Electrical Ratings:

  • "HEAVY DUTY - A600 / N300"
  • Listed under UL 508 - File # E 58589
  • Certified under CSA C22.2 - File # LR 3648
  • CE Compliant EN 60947-5-1

Environmental Temperature Range:

  • Operating: +32°F to +131°F (0°C to +55°C)
  • Storage: -40°F to +185°F (-40°C to +85°C)
  • Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.


These products should only be used where point-of-operation guarding devices have been properly installed & maintained so that appropriate OSHA and ANSI B11.1 regulations & standards are met. Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
