04910-100 Rotary Contact Selector Switch, Yellow by Rees

00 Reviews Write review
04910-100 Rotary Contact Selector Switch, Yellow by Rees
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Rees
  • Part #:04910-100
  • SKU:ID94573
Condition: new
Warranty

Overview


Features:

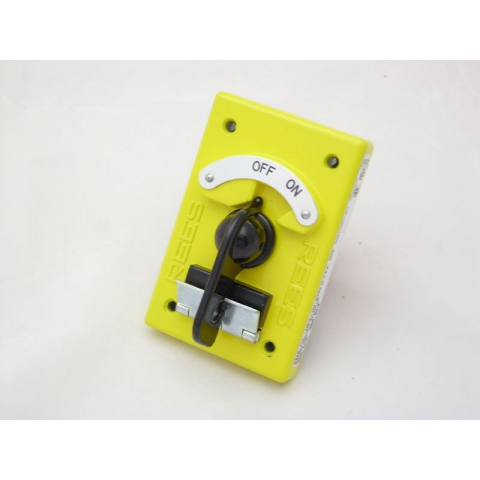

The following rotary cam switch is a hand operated, control circuit device, rated 'Heavy Duty' normally for use with electromagnetic equipment. The yellow cover and black wing lever are made from die-cast zinc and painted with a dry powder paint.

  • Lockable in the center position
  • Nema 12/13, IP 65

Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with all mounting hardware and a solid santoprene rubber gasket which provides an oil tight seal upon installation. The mechanical life of this device is 500,000 operations.

This switch can be found on a variety of machinery. Its rugged construction and long term reliability make this switch extremely well suited to function within various industrial conditions.

This switch is custom built requiring an extended lead time. Please contact us for price and delivery.

Electrical Ratings:

  • "HEAVY DUTY - A600 / N300"
  • Listed under UL 508 - File # E 58589
  • Certified under CSA C22.2 - File # LR 3648
  • CE Compliant EN 60947-5-1

Environmental Temperature Range:

  • Operating: +32°F to +131°F (0°C to +55°C)
  • Storage: -40°F to +185°F (-40°C to +85°C)
  • Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING

These products should only be used where point-of-operation guarding devices have been properly installed & maintained so that appropriate OSHA and ANSI B11.1 regulations & standards are met. Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
