04161-002 2.25" Push Button with Key Lock, Operating Force 3.2 lb by Rees

00 Reviews Write review
04161-002 2.25" Push Button with Key Lock, Operating Force 3.2 lb by Rees
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Rees
  • Part #:04161-002
Condition: new
Warranty

Overview


Features:

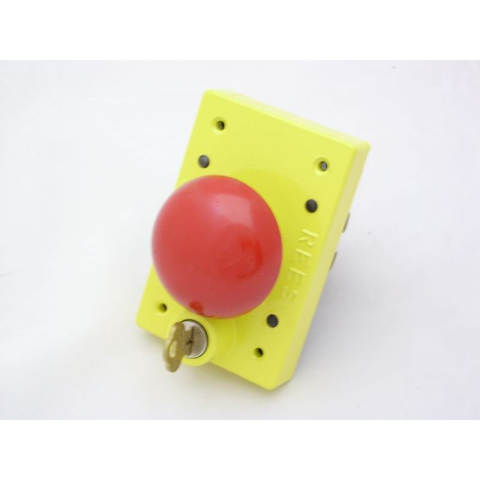

The following switch is a hand operated, key lockable, control circuit device, rated 'Heavy Duty' normally for use with electromagnetic equipment. The yellow cover and the red mushroom plunger head are made from die-cast zinc and painted with a dry powder paint.

  • Gold plated contacts eliminate high resistance tarnishing
  • Nema 12/13, IP 65

Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with all mounting hardware and a solid santoprene rubber gasket which provides an oil tight seal upon installation. The mechanical life of this device is 500,000 operations.

This switch can be found on a variety of machines such as punch presses and press brakes as "RUN", "START" or "STOP" buttons.

The red plunger "Positive Break" style complies with all standards for 'emergency stop' applications. The rugged construction and long term reliability of this switch makes it extremely well suited to function within various industrial/commercial environments.

Electrical Ratings:

  • "HEAVY DUTY - A600 / N300"
  • Certified under CSA C22.2 - File # LR 3648

Environmental Temperature Range:

  • Operating: +32°F to +131°F (0°C to +55°C)
  • Storage: -40°F to +185°F (-40°C to +85°C)
  • Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING

These products should only be used where point-of-operation guarding devices have been properly installed & maintained so that appropriate OSHA and ANSI B11.1 regulations & standards are met. Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
