02911-002 2.25" Metal Mushroom Plunger, Red by Rees

00 Reviews Write review
02911-002 2.25" Metal Mushroom Plunger, Red by Rees
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Rees
  • Part #:02911-002
  • SKU:ID105771
Condition: new
Warranty

Overview

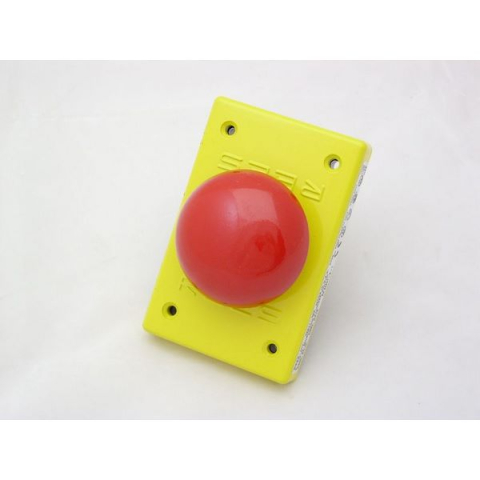

The following switch is a hand operated, control circuit device, rated 'Heavy Duty' normally for use with electromagnetic equipment.  The yellow cover, painted with a dry powder paint, is made from die-cast zinc.  The red mushroom plunger head is powder painted zinc die-cast.

  • Gold plated contacts eliminate high resistance tarnishing
  • Nema 12/13, IP 65

Each captive terminal will accept (2) #14 AWG stranded wires.  Each switch is supplied with all mounting hardware and a solid santoprene rubber gasket which provides an oil tight seal upon installation.  The mechanical life of this device is 1,000,000 operations.

This switch can be found on a variety of machines such as punch presses, press brakes, and spot-welding equipment as 'RUN', 'START' or 'STOP' buttons. Its rugged construction and long term reliability make this switch extremely well suited to function within various industrial/commercial environments.

Electrical Ratings

HEAVY DUTY - A600 / N300

Listed under UL 508 - File # E 58589

Certified under CSA C22.2 - File # LR 3648

CE Compliant IEC/EN 60947-5-1

Environmental Temperature Range

Operating: +32oF to +131oF (0oC to +55oC)

Storage: -40oF to +185oF (-40oC to +85oC)

Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING - DANGER

These products should only be used where point-of-operation guarding devices have been properly installed and maintained so that appropriate OSHA and ANSI B11.1 regulations and standards are met.  Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
