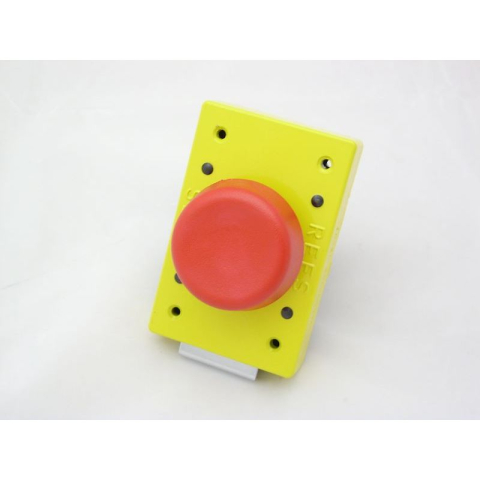

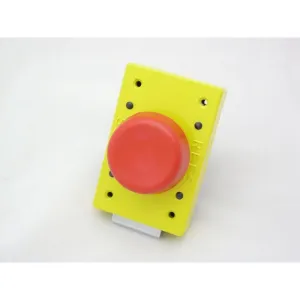

Rees 02650-102 2.25" Mushroom Plunger with Spring Latch, Yellow Cover

Features:

The following switch is a hand operated, spring latchable, control circuit device, rated 'Heavy Duty' normally for use with electromagnetic equipment. The yellow cover, painted with a dry powder paint, is made from die-cast zinc. The red mushroom plastic plunger is molded from DuPont Delrin 100ST Acetal for improved impact resistance and is solid color throughout.

• Gold plated contacts eliminate high resistance tarnishing
• Complies with IEC/EN 60947-5-5 for Emergency Stop Applications
• Nema 12/13, IP 65

Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with all mounting hardware and a solid santoprene rubber gasket which provides an oil tight seal upon installation. The mechanical life of this device is 500,000 operations.

This switch can be found in a variety of uses on industrial machines. Presses and press brakes use them as "STOP" buttons.

Electrical Ratings:

• "HEAVY DUTY - A600 / N300"
• Listed under UL 508 - File # E 58589
• Certified under CSA C22.2 - File # LR 3648
• CE Compliant IEC/EN 60947-5-5

Environmental Temperature Range:

• Operating: +32°F to +131°F (0°C to +55°C)
• Storage: -40°F to +185°F (-40°C to +85°C)
• Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING

These products should only be used where point-of-operation guarding devices have been properly installed & maintained so that appropriate OSHA and ANSI B11.1 regulations & standards are met. Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
