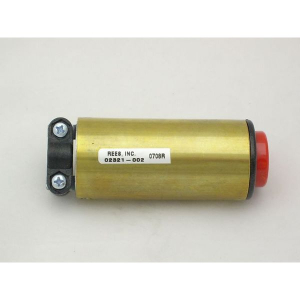

Rees 02321-002 Cylindrical Push Button, Red

The following switch is a hand operated, control circuit device, rated 'Standard Duty'.  The red plastic plunger is made from Lexan and the outer shell is brass.

• Slow Make - Slow Break Momentary Contact
• Nema 12/13, IP 65

The mechanical life of the switch is 500,000 operations.

This switch includes a cord grip and is often used as a circuit start switch wired to the end of a piece of SJO cable affording the operator greater flexibility in movement and vision.

The rugged construction and long term reliability makes this cable pull switch well suited to function within various environments.

Electrical Ratings

STANDARD DUTY - B300 / P300

Certified under CSA C22.2 - File # LR 3648

Environmental Temperature Range

Operating: +32oF to +131oF (0oC to +55oC)

Storage: -40oF to +185oF (-40oC to +85oC)

Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING - DANGER

These products should only be used where point-of-operation guarding devices have been properly installed and maintained so that appropriate OSHA and ANSI B11.1 regulations and standards are met.  Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.

WARNING: USER MUST VERIFY COMPATIBILITY OF ANY LOCKING DEVICE USED WITH THIS SWITCH
