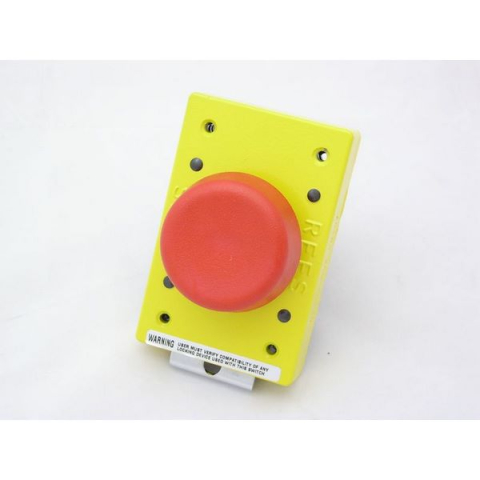

Rees 02182-102 2.25" Mushroom Plunger with Spring Latch, Red

The following switch is a hand operated, spring latchable, control circuit device, rated 'Heavy Duty' normally for use with electromagnetic equipment.  The body, painted with a dry powder paint, is made from die-cast zinc.  The plastic plunger is molded from DuPont Delrin 100ST Acetal for improved impact resistance and is solid color throughout.

• Gold plated contacts eliminate high resistance tarnishing
• Complies with IEC/EN 60947-5-5 for Emergency Stop Applications
• Nema 12/13, IP 65

Each captive terminal will accept (2) #14 AWG stranded wires.  Each switch is supplied with all mounting hardware and a solid santoprene rubber gasket which provides an oil tight seal upon installation.  The mechanical life of this device is 500,000 operations.

This switch can be found in a variety of uses on industrial machines.  Presses and press brakes use them as 'STOP' buttons.

WARNING: USER MUST VERIFY COMPATIBILITY OF ANY LOCKING DEVICE USED WITH THIS SWITCH

Electrical Ratings

HEAVY DUTY - A600 / N300

Listed under UL 508 - File # E 58589

Certified under CSA C22.2 - File # LR 3648

CE Compliant IEC/EN 60947-5-5

Environmental Temperature Range

Operating: +32oF to +131oF (0oC to +55oC)

Storage: -40oF to +185oF (-40oC to +85oC)

Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING - DANGER

These products should only be used where point-of-operation guarding devices have been properly installed and maintained so that appropriate OSHA and ANSI B11.1 regulations and standards are met.  Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
